Brand: Ortronics | SKU: 549622

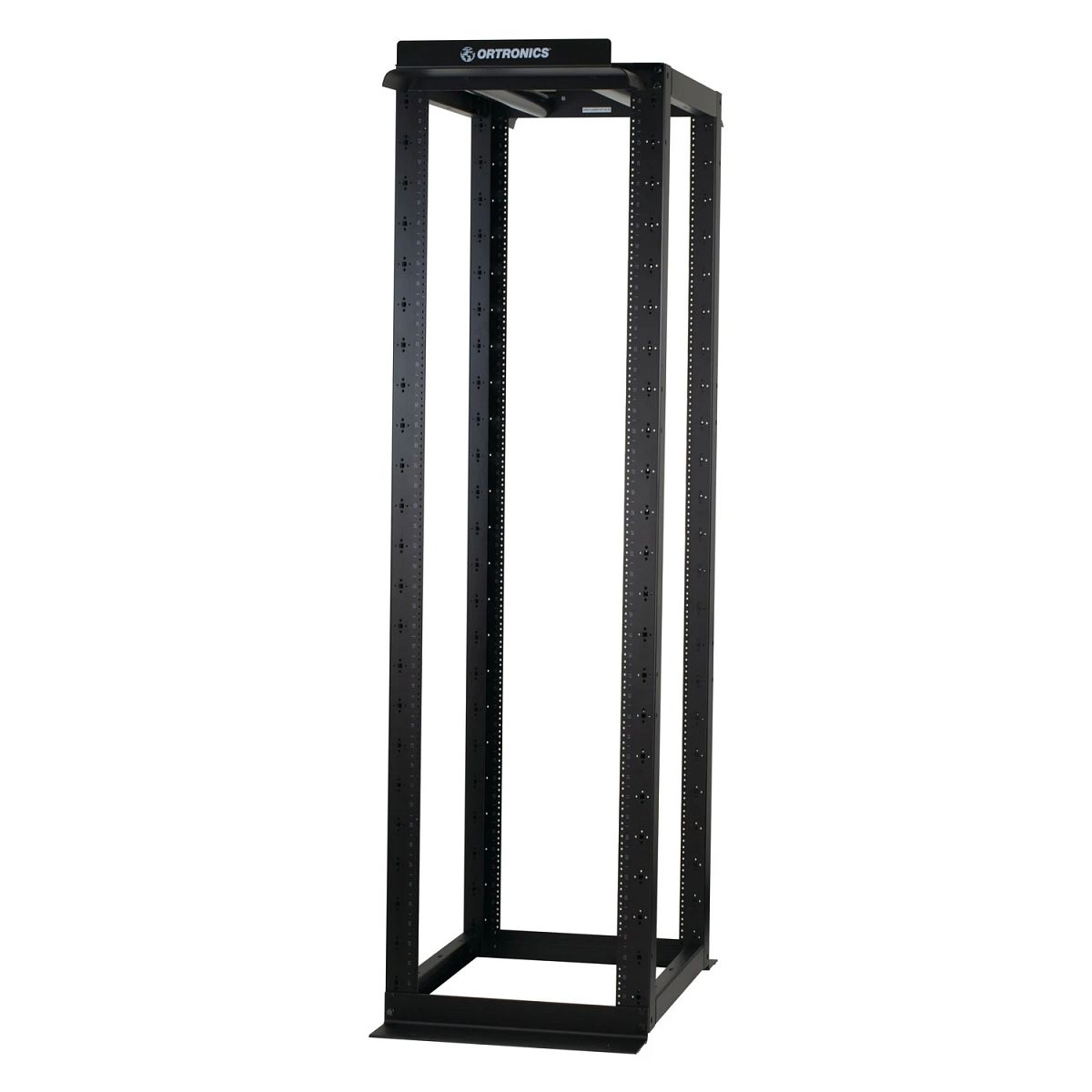

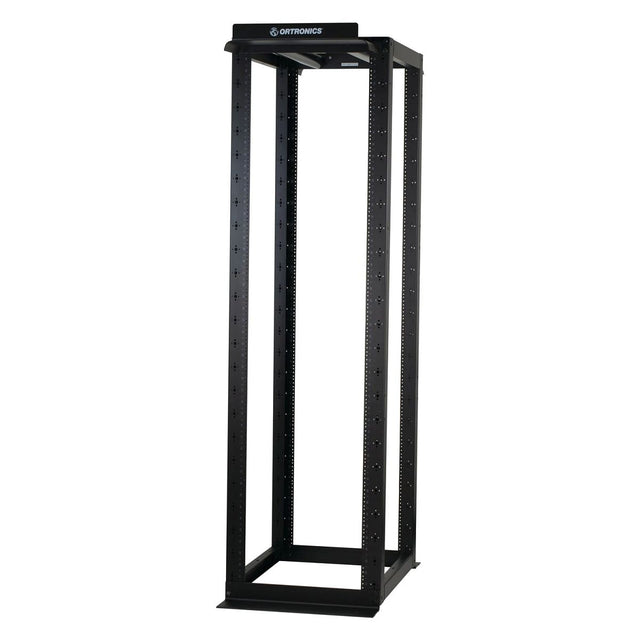

Legrand - Ortronics MM20730FXD12-B | Post Rack, Network Rack, Floor, 45 RU, 85.25 in. H, 23.75 in. W, 40 in. D, Black

Regular price $2,466.91
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Legrand - Ortronics MM20730FXD12-B | Post Rack, Network Rack, Floor, 45 RU, 85.25 in. H, 23.75 in. W, 40 in. D, Black

Mighty Mo 20 4-post racks provide greater flexibility and optimum efficiency in any data center. The fixed racks provide an economical mounting platform for switches and servers while the adjustable rack allows all 4 mounting rails to be adjusted even after the rack has been fastened to the floor. Front and rear waterfalls allow for equipment patching and server patching. All styles of Mighty Mo 20 Vertical managers can be mounted front or rear and airflow baffles can be mounted to manage the airflow of side breathing equipment.Note: Static capacity 2,000 lbs. Assembly required.

Ortronics MM20730FXD12-B Main Features

  • Patented channel construction: Protects the performance of your horizontal cabling better than any other type of racking solution. Hex pattern on all rack sizes simplify cable routing.
  • Honeycomb side rails designed to maximize the airflow of network equipment: Combined with baffles, manages intake and exhaust air creating cold aisle/hot aisle distribution from side vented equipment.
  • Open channels top and bottom: Allows floor and ceiling access for horizontal distribution cables.
  • High density racking solution
  • Choice of Vertical management: A solution for every application- Vertical cable management cage with individual rack unit fingers and hinged slam latch door, Vertical cage with individual rack unit fingers and snap on covers, Vertical cage with hinged latches, and individual cable management rings.
  • Built-in top trough with waterfalls: Gives bend radius control and cable routing.
  • Can be assembled as a 19 or 23 rack: No additional hardware required- no need to stock two sizes of racks.
  • Speed nuts included: Increases speed and ease of assembly, while adding extra strength to your rack--Speednut eliminates the need for a second wrench.
  • Rack includes hardware kit, two packages of hook and loop D-style straps and 50 12-24 equipment mounting screws: Do not have to purchase as separate items- money saving.

Specifications

Ortronics MM20730FXD12-B Additional Information

  • RoHS Conformant: Yes
  • Product Environmental Profile: Yes

Ortronics MM20730FXD12-B Specifications

ColorBlack
TypeMOUNTING RAILS/HARDWARE
UNSPSC Code24102001
ECCNEAR99
Country of OriginUS - United States
UNSPSC43223308
Color FamilyBlack
Width23.75 in.
Height85.25 in.
Depth40 in.
Additional FeaturesBuilt-In Top Trough with Waterfalls
Mounting TypeFloor Mount
Product Includes(50) 12-24 Screws, Hook and Loop D-Style Straps
TypePost Rack
ColorBlack
Mounting Holes12-24 Screw
Rack Units45
ColorBlack
UPC Number662875214830
Country Of OriginUnited States
Product LineLegrand
Application SectorCommercial
TypeRack
