Brand: Ortronics
|
SKU:
281518

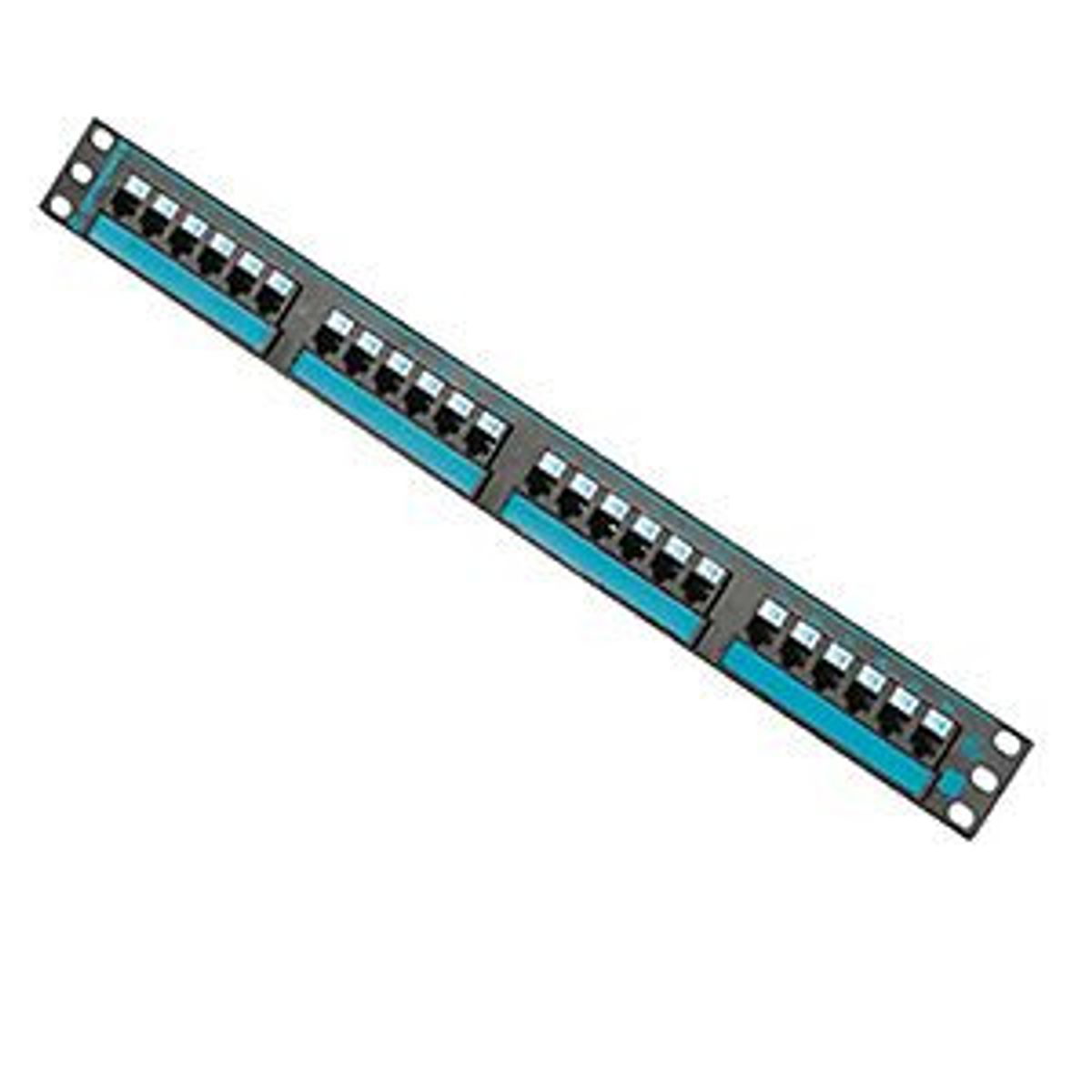

Legrand - Ortronics PHA66U24 | Clarity 6 Angled High Density 110 Patch Panel, 24-Port
Regular price
$385.25
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand - Ortronics PHA66U24 | Clarity 6 Angled High Density 110 Pa...
Regular price
$385.25
Unit price
Brand: Ortronics
|
SKU:
281518
Regular price
$385.25
Unit price
Description
Description
Legrand - Ortronics PHA66U24 | Clarity 6 Angled High Density 110 Patch Panel, 24-Port
Clarity6 angled 24-port Category 6 patch panel, high density, six-port modules, 19 x 1.75.
Ortronics PHA66U24 Main Features
- Panel Dimensions: 19 W x 1.75 H in.
- Panel Features: Angled, High Density
- Recessed design with lower mounted profile: Directs cords more easily to Vertical management.
- ETL verified to TIA Category 6 component spec: Elevated component performance.
- Center tuned to Clarity 6 patch cords: More transparent mated union.
- Universal wiring: Supports T568A and T568B installs.
- Easy lace 110 termination: Saves installation time.
- Supplied rear cable management: Supports good cabling practice.
- High density design: Maximizes rack utilization.
- RoHS compliant: Lead free.
Specifications
Specifications
Ortronics PHA66U24 Additional Information
- RoHS Conformant: Yes
- Product Environmental Profile: Yes
- Category Rating:Category 6
- Performance Rating:Category 6
- Depth Metric: 46.23 mm
- Number of Ports: 24
- Width Metric: 482.6 mm
- Height USA: 1.75 in.
- Height Metric: 44.45 mm
- Cable Diameter Range: 22-26 AWG
- Univeral T568A/B
- Tech Info : IP5
Ortronics PHA66U24 Specifications
| UNSPSC Code | 43223309 |
|---|---|
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 43223309 |
| Brand | Clarity |
| Mounting Type | Rack Mount |
| Panel Color | Black |
| Panel Type | Loaded |
| Rack Units | 1 |
| Shielded | Non Shielded |
| Termination | 110 Punchdown |
| Wiring Configuration | T568A, T568B |
| Category | Cat 6 |
| Color | Black |
| UPC Number | 662875497219 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Panel |
Ortronics (Legrand) Education Series Videos
| How to Terminate a Shielded Field-Term Plug using Cat6a | Click to View |
|---|---|
| KT2 Termination Video - Keystone Jack with Lacing Cap Termination | Click to View |
| Termination of PowerWise 1G 4PPoE Cable with Lacing Cap | Click to View |
| How to Terminate FTPU Series Modular Plugs using Category 6a | Click to View |
| How-to-Terminate HDJ Jack with CAT6A Jack and Cable | Click to View |
| Infinium LC Loose Tube Fiber Termination | Click to View |
| How To: Install Infinium LC Fiber Connector | Click to View |
| Modular Patch Panel with Copper and Fiber | Click to View |
| Re-configurable LC (RLC) Patch Cord | Click to View |
| How To: Install Infinium SC Field Connector | Click to View |
