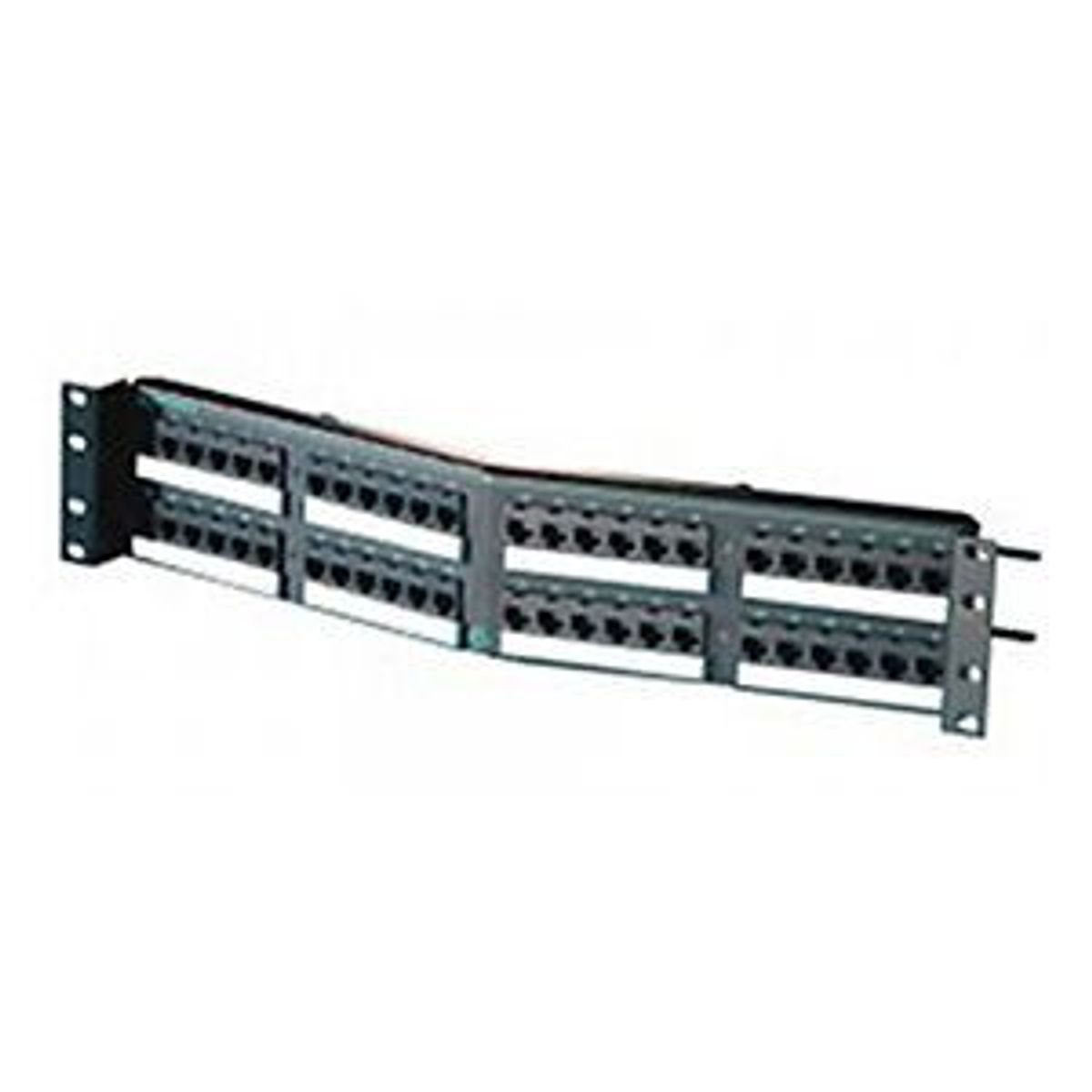

Legrand - Ortronics PHA66U48 | Clarity 6 Angled High Density 110 Pa...
Description
Description
Clarity 6 angled 48-port high density Category 6 patch panel utilizes an innovative recessed angle design for a lower mounted profile. This Clarity 6 patch panel is component compliant to TIA/EIA Category 6 performance requirements. It occupies one rack unit, and measures 19 x 3.5. Jacks are grouped in six-port modules. It is part of the Clarity 6 link and channel solution that provides significant installed performance headroom.
Ortronics PHA66U48 Main Features
- Panel Dimensions: 19 W x 3.5 H in.
- Panel Features: Angled, High Density
- Recessed design with lower mounted profile: Directs cords more easily to Vertical management.
- ETL verified to TIA Category 6 component spec: Elevated component performance.
- Center tuned to Clarity 6 patch cords: More transparent mated union.
- Universal wiring: Supports T568A and T568B installs.
- Easy lace 110 termination: Saves installation time.
- Supplied rear cable management: Supports good cabling practice.
- High density design: Maximizes rack utilization.
- RoHS compliant: Lead free.
Specifications
Specifications
Ortronics PHA66U48 Additional Information
- RoHS Conformant: Yes
- Product Environmental Profile: Yes
- Category Rating:Category 6
- Performance Rating:Category 6
- Depth Metric: 46.23 mm
- Number of Ports: 48
- Width Metric: 482.6 mm
- Height USA: 3.5 in.
- Height Metric: 88.9 mm
- Cable Diameter Range: 22-26 AWG
- Univeral T568A/B
- Tech Info : IP5
Ortronics PHA66U48 Specifications
| Category | Category 6 |
|---|---|
| Color | Black |
| Number of Ports | 48 |
| Rack Units | 2 |
| Termination | 110-MOD |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 43223309 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 43223309 |
| Brand | Clarity |
| Mounting Type | Rack Mount |
| Panel Color | Black |
| Panel Type | Loaded |
| Rack Units | 2 |
| Shielded | Non Shielded |
| Termination | 110 Punchdown |
| Wiring Configuration | T568A, T568B |
| Category | Cat 6 |
| Color | Black |
| UPC Number | 662875497226 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Panel |
