Legrand - Ortronics PHD68U24 | Clarity Cat 6 Patch Panel, 24-Port
Regular price
$325.50
Unit price
Brand: Ortronics
|
SKU:
254767
Regular price
$325.50
Unit price
Description
Description

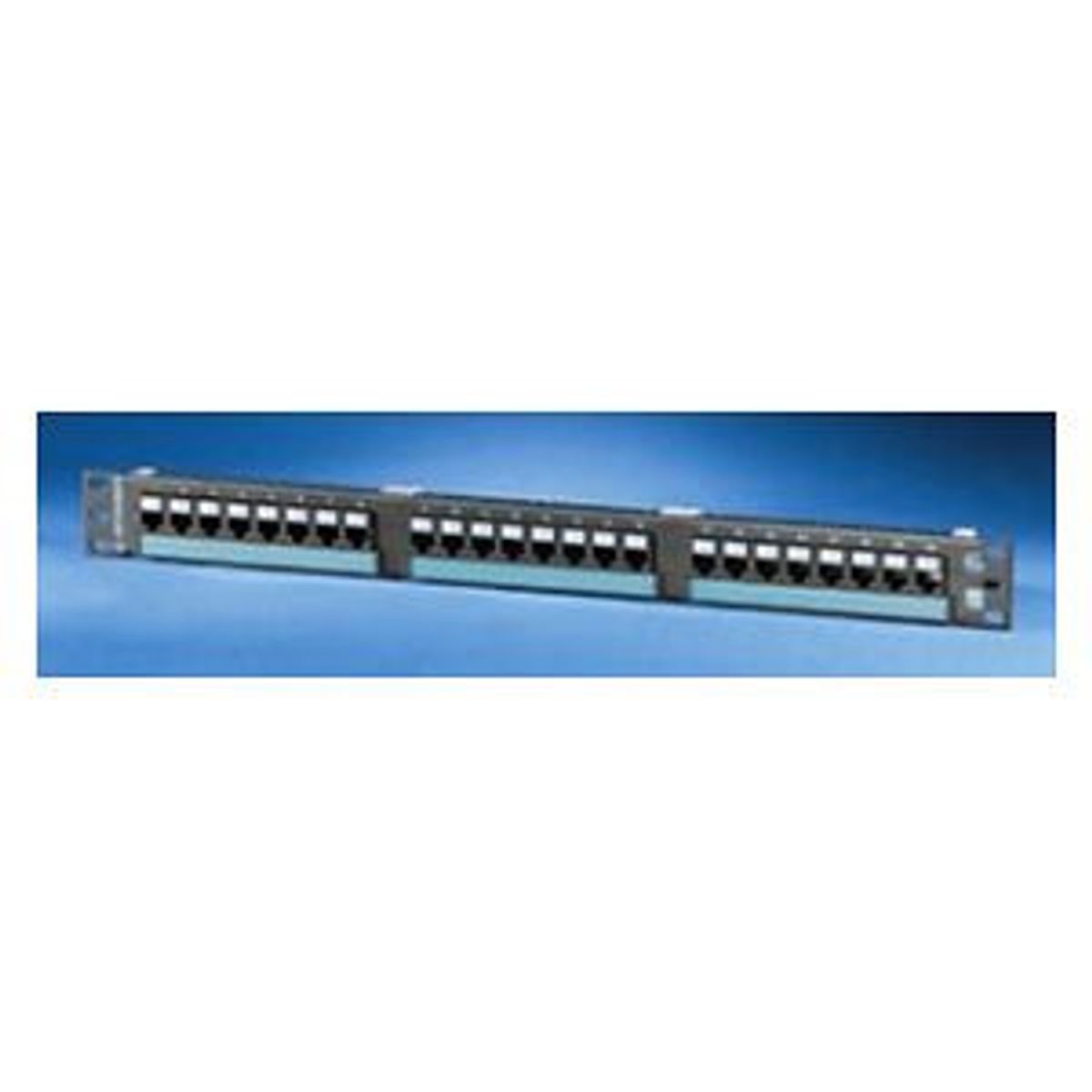

Legrand - Ortronics PHD68U24 | Clarity Cat 6 Patch Panel, 24-Port
Clarity 6 24-Port High Density Category 6 patch panel is component compliant to EIA/TIA Category 6 performance requirements. It occupies one rack unit and measures 19 x 1.75. Jacks are grouped in eight-port modules. Part of the Clarity 6 link and channel solution that provides significant installed performance headroom.
Ortronics PHD68U24 Main Features
- ETL verified to TIA Category 6 component spec: Ensures component performance.
- Center tuned to Clarity 6 patch cords: More transparent mated union.
- Universally wired 110 termination: Supports T568A and T568B installs.
- New IDC housing: Handles larger Ctegory 6 conductors.
- Supplied rear cable management: Supports good cabling practice.
- High density design: Maximizes rack utilization.
- RoHS compliant: Lead free.
Specifications
Specifications
Ortronics PHD68U24 Specifications
| Category | Category 6 |
|---|---|
| Color | Black |
| Number of Ports | 24 |
| Rack Units | 1 |
| Termination | 110-MOD |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 43223309 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 43223309 |
| Brand | Clarity |
| Mounting Type | Rack Mount |
| Panel Color | Black |
| Panel Type | Loaded |
| Rack Units | 4 |
| Termination | IDC |
| Wiring Configuration | T568A, T568B |
| Category | Cat 6 |
