Legrand - Ortronics PJ6A-44 | Clarity Cat 6a Panel Jack - Rear Load...
Regular price
$23.72
Unit price
Brand: Ortronics
|
SKU:
448463
Regular price
$23.72
Unit price
Description
Description

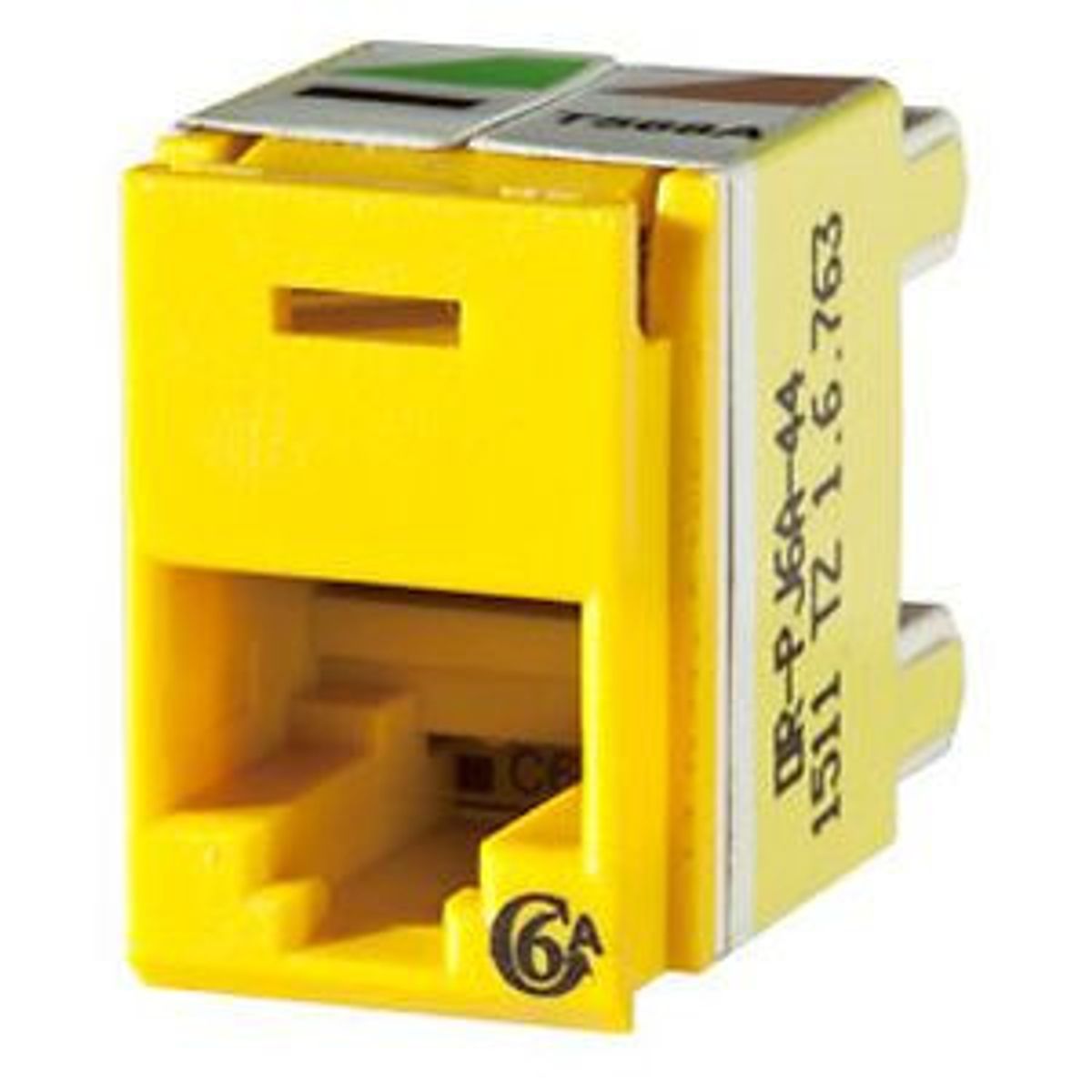

Legrand - Ortronics PJ6A-44 | Clarity Cat 6a Panel Jack - Rear Load, Yellow
Clarity 6A patch panel jacks, rear load into patch panels. ETL verified to TIA Category 6a component specification. Rear load positive latch design, secures mounting of the jack into the patch panel. Universal T568A/B wiring label and tapered wiring towers simplify termination. Center tuned to Clarity 6A/10G patch cords for optimum channel performance
Ortronics PJ6A-44 Main Features
- ETL Verified to Category 6 component standard: Ensures standards compliance.
- New positive jack latching design: Secures mounting of jacks into panel.
- Easy to follow universal wiring label that supports T568A and T568B wiring schemes: Quick and user-friendly, eliminates confusion.
- New panel jack footprint: Allows high density panel applications.
- Icon compatible: Supports 606 designation requirements.
- RoHS compliant: Lead free.
Specifications
Specifications
Ortronics PJ6A-44 Additional Information
- RoHS Conformant: Yes
- Wire Gauge: 22-25 AWG
- Category Rating: Category 6a
- Performance Rating: Category 6a
- Depth Metric: 27.94 mm
- Footprint: Panel Jack
- Color: Yellow
- Width Metric: 14.22
- Height USA: .89 in
- Height Metric: 22.6 mm
- Category 6a/UTP
- Width USA: 0.56 in
- Depth USA: 1.10 in
- Cable Diameter Range: 22-25 AWG
- Universal T568A/B
Ortronics PJ6A-44 Specifications
| Category | Category 6A |
|---|---|
| Color | Yellow |
| Number of Ports | 1 |
| Termination | 110 |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 39121444 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121444 |
| Color Family | Yellow |
| Color | Yellow |
| Plating Material | Nickel-Plated |
| Termination | IDC |
| Wiring Configuration | T568A/T568B |
| Category | Cat 6A |
| UPC Number | 662875855514 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | UL Standard |
Ortronics (Legrand) Education Series Videos
| How to Terminate a Shielded Field-Term Plug using Cat6a | Click to View |
|---|---|
| KT2 Termination Video - Keystone Jack with Lacing Cap Termination | Click to View |
| Termination of PowerWise 1G 4PPoE Cable with Lacing Cap | Click to View |
| How to Terminate FTPU Series Modular Plugs using Category 6a | Click to View |
| How-to-Terminate HDJ Jack with CAT6A Jack and Cable | Click to View |
| Infinium LC Loose Tube Fiber Termination | Click to View |
| How To: Install Infinium LC Fiber Connector | Click to View |
| Modular Patch Panel with Copper and Fiber | Click to View |
| Re-configurable LC (RLC) Patch Cord | Click to View |
| How To: Install Infinium SC Field Connector | Click to View |
