Legrand - Ortronics PMP612H | Clarity Cat 6 Mini Patch Panel, Hinge...
Regular price
$217.42
Unit price
Brand: Ortronics
|
SKU:
254839
Regular price
$217.42
Unit price
Description
Description

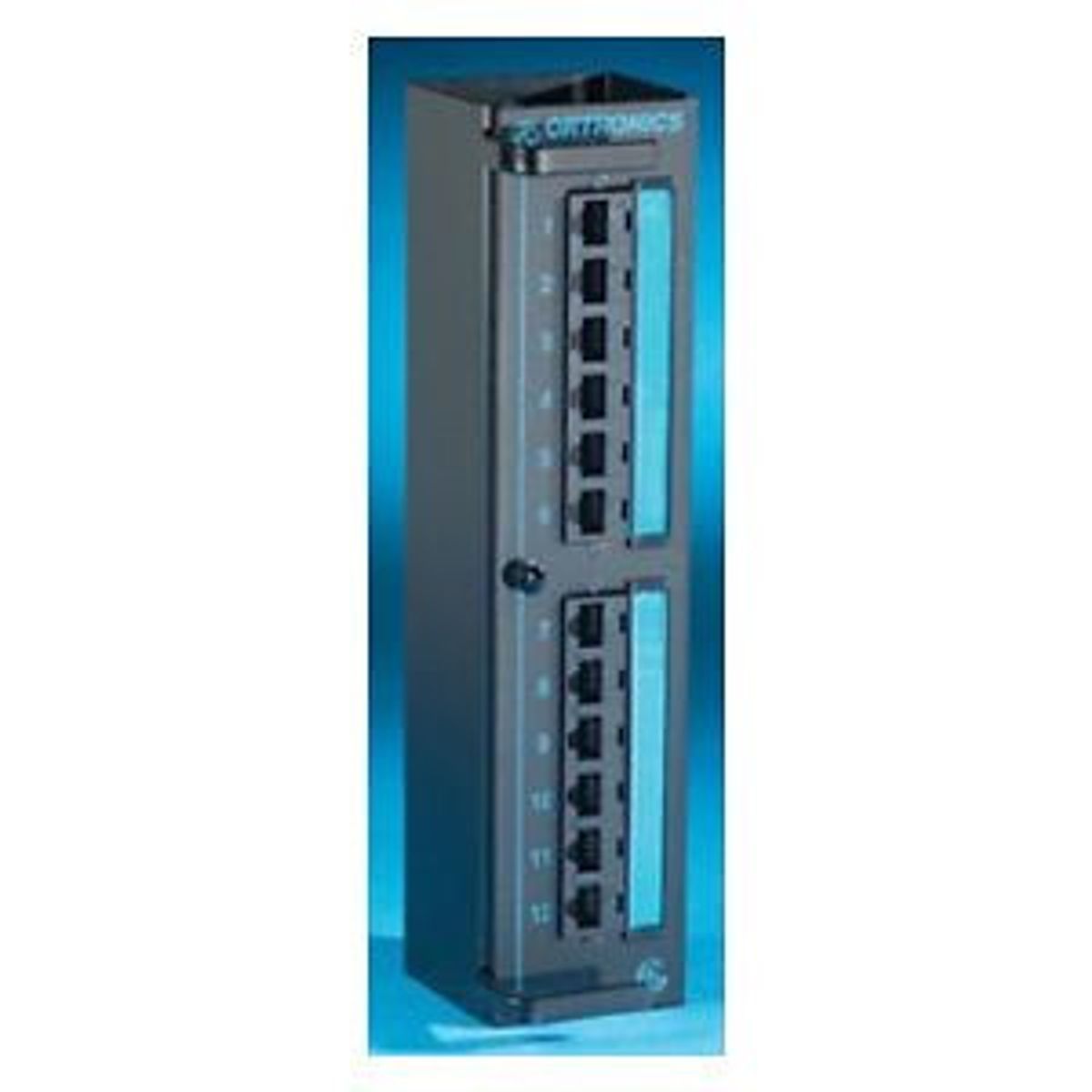

Legrand - Ortronics PMP612H | Clarity Cat 6 Mini Patch Panel, Hinged Mounting
Clarity 6 12-Port Category 6 mini patch panel is component compliant to EIA/TIA Category 6 performance requirements. The panel measures 10 x 2.5. Jacks are grouped in six-port modules. Part of the Clarity 6 link and channel solution that provides significant installed performance headroom.
Ortronics PMP612H Main Features
- ETL verified to TIA Category 6 component spec: Ensures component performance.
- Center tuned to Clarity 6 patch cords: More transparent mated union.
- Universally wired 110 termination: Supports T568A and T568B installs.
- New IDC housing: Handles larger Ctegory 6 conductors.
- Supplied rear cable management: Supports good cabling practice.
- High density design: Maximizes rack utilization.
- RoHS compliant: Lead free.
- ETL verified to TIA Category 6 component spec: Ensures component performance.
- Center tuned to Clarity 6 patch cords: More transparent mated union.
- Universally wired 110 termination: Supports T568A and T568B installs.
- New IDC housing: Handles larger Category 6 conductors.
- Supplied rear cable management: Supports good cabling practice.
- High density design: Maximizes rack utilization.
- RoHS compliant: Lead free.
Specifications
Specifications
Ortronics PMP612H Additional Information
- RoHS Conformant: Yes
- Product Has Potential to Contribute to LEED: Yes
- Category Rating:Category 6
- Performance Rating:Category 6
- Number of Ports: 12
- Width Metric: 63.5 mm
- Height USA: 10 in
- Height Metric: 254 mm
- Cable Diameter Range: 22-26 AWG
- Universal T568A/B
Ortronics PMP612H Specifications
| Category | Category 6 |
|---|---|
| Number of Ports | 12 |
| Termination | 110-MOD |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 43223309 |
| ECCN | EAR99 |
| Country of Origin | US - United States |
| UNSPSC | 43223309 |
| Brand | Clarity |
| Mounting Type | Hinged Mount |
| Panel Color | Black |
| Panel Type | Loaded |
| Wiring Configuration | T568A, T568B |
| Category | Cat 6 |
| Color | Black |
| UPC Number | 662875462439 |
| Country Of Origin | United States |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Panel |
