Legrand - Ortronics S225E00-00 | Series II, 2-Port, Cat 5e Jack, Black
Regular price
$22.42
Unit price
Brand: Ortronics
|
SKU:
248946
Regular price
$22.42
Unit price
Description
Description

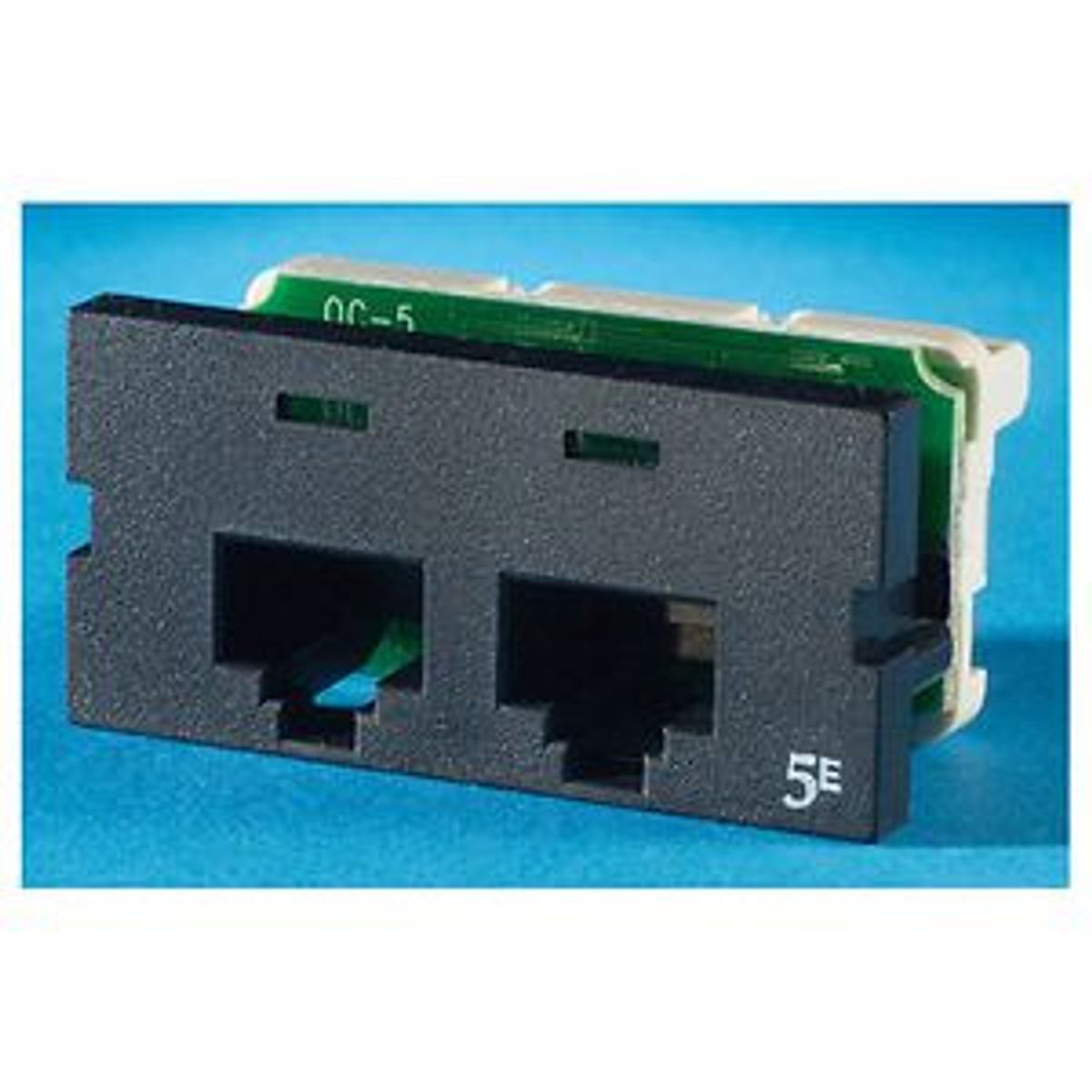

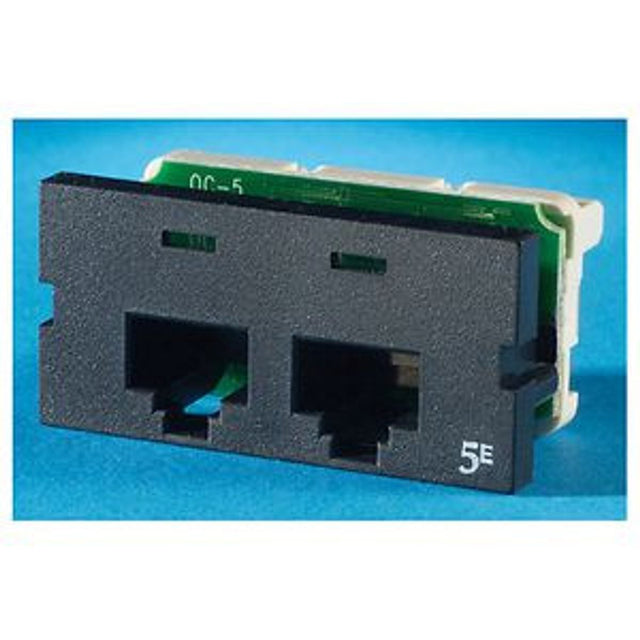

Legrand - Ortronics S225E00-00 | Series II, 2-Port, Cat 5e Jack, Black
Clarity 5E Series II module two jack ports (1 unit), ETL verified to TIA Category 5e component specification. Front-loading and front removable. New universal T568A/B wiring label and tapered wiring towers simplify termination. Center tuned to Clarity 5E patch cords for optimum performance.
Ortronics S225E00-00 Main Features
- Center tuned design: Transparent interface with Clarity 5E cords.
- Easy lace IDC housing: Reduces wiring time.
- Easy to follow T568A and T568B wiring label: Quick, user-friendly, eliminates confusion.
- Rugged Series II footprint: Fits in all Series II faceplates and housings.
- Front removable: Less intrusive access for adds, moves, changes.
- Icon compatible, Category 5e marking on jack face: Supports 606 designation requirements.
Specifications
Specifications
Ortronics S225E00-00 Additional Information
- RoHS Conformant: Yes
- Wire Gauge: 22-26 AWG
- Category Rating: Category 5e
- Depth Metric: 30.48 mm
- Footprint: Serie II
- Color: Black
- Width Metric: 48.26 mm
- Height USA: .92 in.
- Height Metric: 23.37 mm
- Category 5e/UTP
Ortronics S225E00-00 Specifications
| Category | Category 5E |
|---|---|
| Color | Black |
| Number of Ports | 2 |
| Termination | 110 |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 39121444 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121444 |
| Color Family | Black |
| Color | Black |
| Category | Cat 5e |
| UPC Number | 662875438380 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | UL Standard |
