Brand: Ortronics
|
SKU:
311976

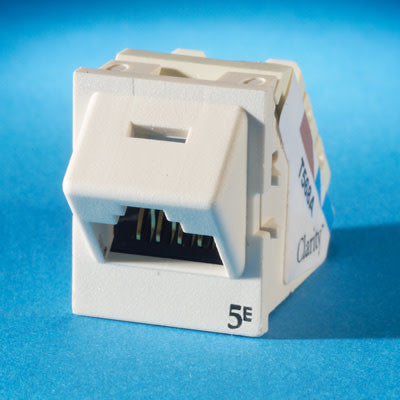

Legrand - Ortronics TJ5E45-88 | Cat 5e Angled TracJack, T568A/B, White, 1, Beryllium Copper, Gold-Plated, Nickel-Plated
Regular price
$13.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand - Ortronics TJ5E45-88 | Cat 5e Angled TracJack, T568A/B, Wh...
Regular price
$13.19
Unit price
Description
Description
Legrand - Ortronics TJ5E45-88 | Cat 5e Angled TracJack, T568A/B, White, 1, Beryllium Copper, Gold-Plated, Nickel-Plated
Clarity 5E Angled TracJack, ETL verified to TIA Category 5e component specification, is front-loading and front removable. New universal T568A/B wiring label and tapered wiring towers simplify termination. Center tuned to Clarity 5E patch cords for significant
Ortronics TJ5E45-88 Main Features
- Easy to follow universal wiring label: Quick, user-friendly, eliminates confusion.
- Front removable: Less intrusive access for adds, moves, changes.
- Standard TracJack footprint: Fits in all Tracjack faceplates and housings.
- Icon compatible, with C6 Marking on jack face: Supports 606 designation requirements.
- RoHS compliant: Lead free.
- Center tuned design: Transparent interface with Clarity6 cords.
- Easy lace IDC housing: Reduces wiring time.
Specifications
Specifications
Ortronics TJ5E45-88 Additional Information
- RoHS Conformant: Yes
Ortronics TJ5E45-88 Specifications
| UNSPSC Code | 39121444 |
|---|---|
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121444 |
| Color Family | White |
| Color | White |
| Insert Material | Beryllium Copper |
| Module Type | Cat 5e |
| Plating Material | Gold-Plated, Nickel-Plated |
| Wiring Configuration | T568A/B |
| UPC Number | 662875480754 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | UL Standard |
Ortronics (Legrand) Education Series Videos
| How to Terminate a Shielded Field-Term Plug using Cat6a | Click to View |
|---|---|
| KT2 Termination Video - Keystone Jack with Lacing Cap Termination | Click to View |
| Termination of PowerWise 1G 4PPoE Cable with Lacing Cap | Click to View |
| How to Terminate FTPU Series Modular Plugs using Category 6a | Click to View |
| How-to-Terminate HDJ Jack with CAT6A Jack and Cable | Click to View |
| Infinium LC Loose Tube Fiber Termination | Click to View |
| How To: Install Infinium LC Fiber Connector | Click to View |
| Modular Patch Panel with Copper and Fiber | Click to View |
| Re-configurable LC (RLC) Patch Cord | Click to View |
| How To: Install Infinium SC Field Connector | Click to View |
Documents and Downloads
