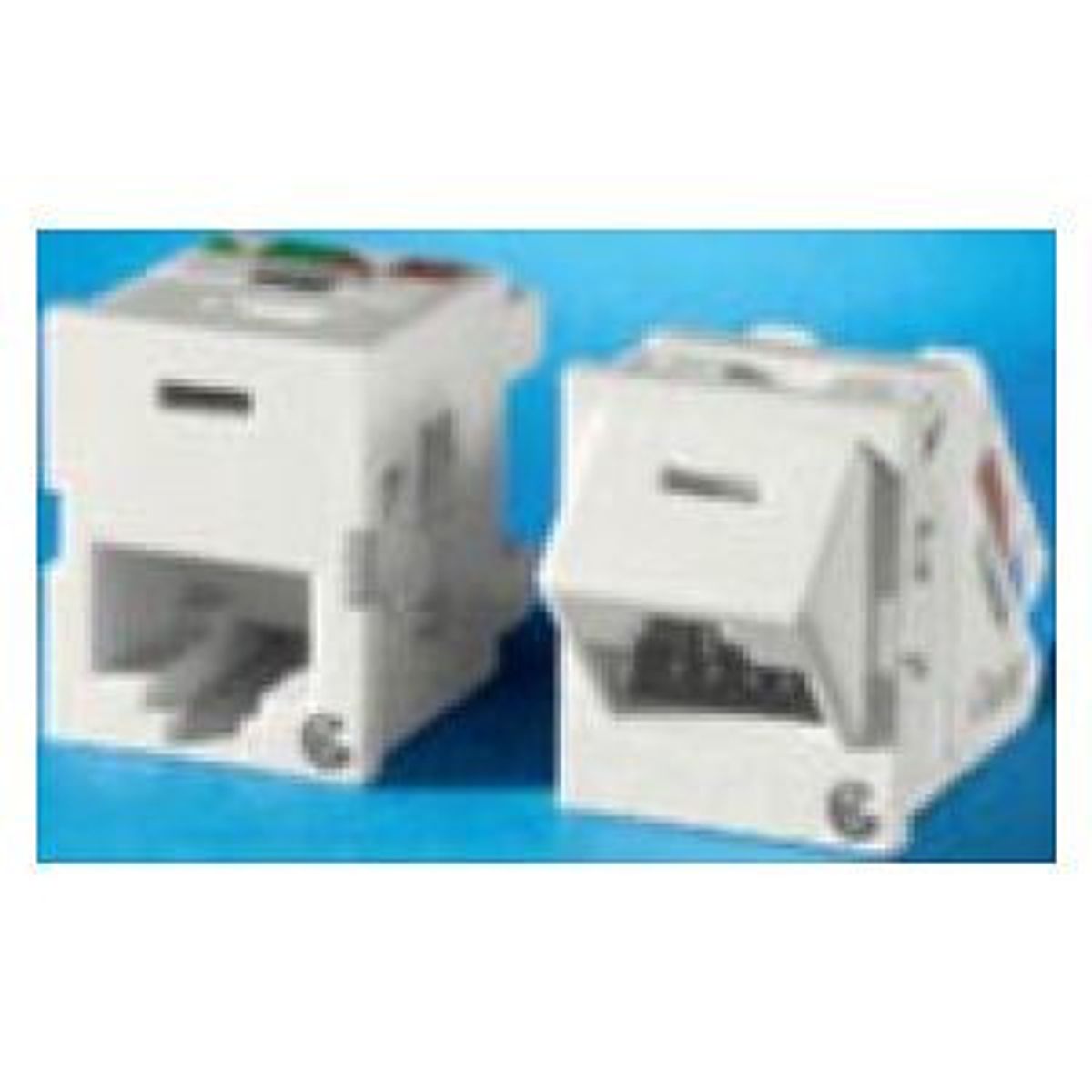

Legrand - Ortronics TJ600-27 | Clarity TracJack Cat 6 Jack, Purple
Regular price
$17.14
Unit price
Brand: Ortronics
|
SKU:
234140
Regular price
$17.14
Unit price
Description
Description
Legrand - Ortronics TJ600-27 | Clarity TracJack Cat 6 Jack, Purple
Clarity 6 TracJack, ETL verified to TIA Category 6 component specification. Front-loading and front removable. New universal T568A/B wiring label and tapered wiring towers simplify termination. Center tuned to Clarity 6 patch cords for optimum performance
Ortronics TJ600-27 Main Features
- ETL Verified to Category 6A component standard: Ensures standards compliance.
- Easy to follow universal wiring label: Quick and user-friendly, eliminates confusion.
Specifications
Specifications
Ortronics TJ600-27 Additional Information
- RoHS Conformant: Yes
- Wire Gauge: 22-26 AWG
- Category Rating:Category 6
- Depth Metric: 26.92 mm
- Footprint: TracJack
- Color: Purple
- Width Metric: 18.54 mm
- Height USA: .92 in.
- Height Metric: 23.37 mm
- Category 6/UTP
Ortronics TJ600-27 Specifications
| Category | Category 6 |
|---|---|
| Color | PURPLE |
| Number of Ports | 1 |
| Termination | 110 |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 39121444 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121444 |
| Color Family | Purple |
| Color | Purple |
| Plating Material | Nickel-Plated |
| Termination | IDC |
| Wiring Configuration | T568A/T568B |
| Category | Cat 6 |
| UPC Number | 662875433255 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | TIA-568.2-D, UL 1863, IEEE 802.3af / 802.3at, 802.3bt Type 3 and Type 4, FCC part 68, Subpart F and IEC-603-7 compliant |
