Legrand - Ortronics TJ645-36 | Clarity TracJack Category 6 Jack, 45...
Regular price
$17.14
Unit price
Brand: Ortronics
|
SKU:
234149
Regular price
$17.14
Unit price
Description
Description

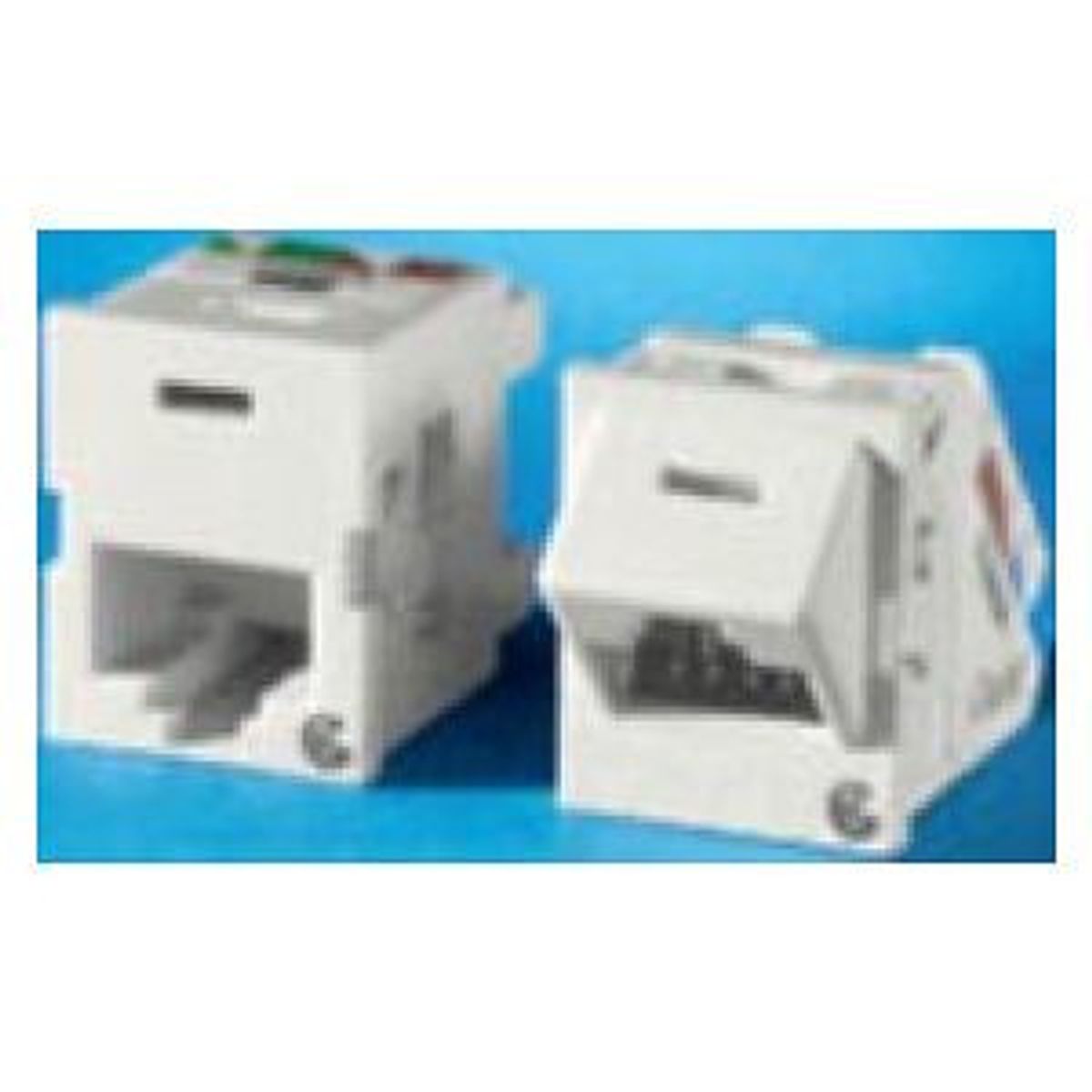

Legrand - Ortronics TJ645-36 | Clarity TracJack Category 6 Jack, 45°, Blue
Clarity 6 Angled TracJack, ETL verified to TIA Category 6 component specification, is front-loading and front removable. New universal T568A/B wiring label and tapered wiring towers simplify termination. Center tuned to Clarity 6 patch cords for optimum performance.
Ortronics TJ645-36 Main Features
- Easy to follow universal wiring label: Quick, user-friendly, eliminates confusion.
- Front removable: Less intrusive access for adds, moves, changes.
- Standard TracJack footprint: Fits in all Tracjack faceplates and housings.
- Icon compatible, with C6 Marking on jack face: Supports 606 designation requirements.
- RoHS compliant: Lead free.
- Center tuned design: Transparent interface with Clarity6 cords.
- Easy lace IDC housing: Reduces wiring time.
Specifications
Specifications
Ortronics TJ645-36 Additional Information
- RoHS Conformant: Yes
- Wire Gauge: 22-26 AWG
- Category Rating:Category 6
- Depth Metric: 31.24 mm
- Footprint: TracJack
- Color: Blue
- Number of Ports: 1-port
- Width Metric: 18.54 mm
- Height USA: .92 in.
- Height Metric: 23.37 mm
- Category 6/UTP
Ortronics TJ645-36 Specifications
| Category | Category 6 |
|---|---|
| Color | BLUE |
| Number of Ports | 1 |
| Termination | 110 |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 39121444 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121444 |
| Color Family | Blue |
| Color | Blue |
| Plating Material | Nickel-Plated |
| Termination | IDC |
| Wiring Configuration | T568A/T568B |
| Category | Cat 6 |
| UPC Number | 662875476160 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | UL Standard |
Ortronics (Legrand) Education Series Videos
| How to Terminate a Shielded Field-Term Plug using Cat6a | Click to View |
|---|---|
| KT2 Termination Video - Keystone Jack with Lacing Cap Termination | Click to View |
| Termination of PowerWise 1G 4PPoE Cable with Lacing Cap | Click to View |
| How to Terminate FTPU Series Modular Plugs using Category 6a | Click to View |
| How-to-Terminate HDJ Jack with CAT6A Jack and Cable | Click to View |
| Infinium LC Loose Tube Fiber Termination | Click to View |
| How To: Install Infinium LC Fiber Connector | Click to View |
| Modular Patch Panel with Copper and Fiber | Click to View |
| Re-configurable LC (RLC) Patch Cord | Click to View |
| How To: Install Infinium SC Field Connector | Click to View |
