Brand: Legrand
|
SKU:
975641

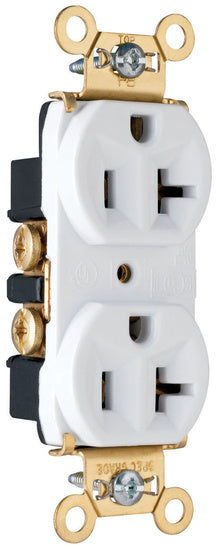

Legrand PS5362-W | Pass and Seymour | Heavy-Duty Spec Grade Receptacles, Back & Side Wire, 20A, 125V, White
Regular price
$49.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand PS5362-W | Pass and Seymour | Heavy-Duty Spec Grade Recepta...
Regular price
$49.91
Unit price
Description
Description
Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown
Features
- Heavy-duty, brass strap for added strength and ground conductivity.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- High strength nylon face.
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
- Eight back wire holes.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
Specifications
General Info
| Color | White |
|---|---|
| UPC Number | 785007859942 |
| Country Of Origin | Mexico |
| Product Line | Pass and Seymour |
| Application Sector | Commercial |
| Standard | cULus UL498, CSA C22.2 No. 42 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
|---|
Technical Information
| Number of Poles | Double Pole |
|---|---|
| Voltage | 125 V |
| Connection | Back and side wire |
| Dielectric Strength | Withstands 2000V minimum |
| Temperature Rating | Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact |
| Wire Size | #14 - #10 |
| Number of Wires | 3 |
| Environmental Conditions | Flammability: UL94 V2 |
