Brand: Legrand
|
SKU:
976793

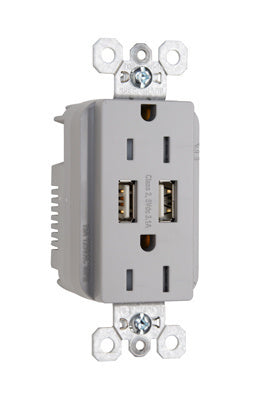

Legrand TR5262USBGRY | Pass and Seymour | Fed Spec Grade USB Charger w/ Tamper-Resistant 15A Duplex Receptacles, Gray
Regular price
$60.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand TR5262USBGRY | Pass and Seymour | Fed Spec Grade USB Charge...
Regular price
$60.75
Unit price
Description
Description
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
- AC receptacles available in 15 and 20A, 125V.
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
General Info
| Color | Gray |
|---|---|
| UPC Number | 785007031638 |
| Country Of Origin | China |
| Product Line | Pass and Seymour |
| Application Sector | Commercial |
| Standard | CSA Listed, cULus, FSUL, UL Listed, RoHS |
Additional Information
| Product Environmental Profile | Yes |
|---|
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
|---|
Technical Information
| Number of Poles | Double Pole |
|---|---|
| Voltage | 125 V |
| Connection | Side and Back Wired |
| Dielectric Strength | Withstands 2000V minimum |
| Phase | Single |
| Temperature Rating | Maximum continuous +60°C, minimum -40° without impact |
| Wire Size | #14 -#10 AWG Copper Conductor Only |
| Number of Wires | 3 |
| Environmental Conditions | UL94 V2 |
