Brand: Leviton Manufacturing Co
|
SKU:
10067481

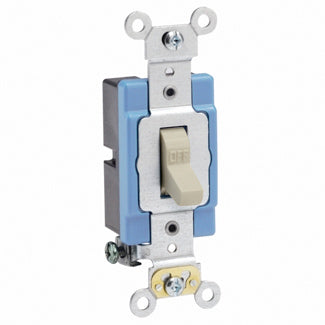

Leviton 1201-2I | 15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired - IVORY
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 1201-2I | 15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet...
Regular price
$6.76
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10067481
Regular price
$6.76
Unit price
Shipping calculated at checkout.
Description
Description
15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired - IVORY
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Product Features
| Color: | Ivory |
|---|---|
| Device Type: | Toggle Switch |
| Function: | Single-Pole |
| Grade: | Extra Heavy-Duty Industrial Specification Grade |
Specifications
Specifications
AC Horsepower Ratings
| HP Rating: | 1/2HP-120V 2HP-240V |
|---|---|
| Max. Amperage: | 12 Amp |
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 1500V for 1 minute |
| Endurance: | 50,000 cycles minimum |
| Grounding: | Self-Grounding |
| Overload UL20 Test: | 100 cycles of OL at 4.8 times rated current |
| Temperature Rise: | Maximum 30 degrees C rise |
| Voltage: | 120/277 VAC |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 65°C |
Material Specifications
| Base Material: | Thermoplastic |
|---|---|
| Color: | Ivory |
| Contact Material: | Silver Alloy |
| Cover Material: | Thermoplastic |
| Ground Clips: | Brass |
| Grounding Screw: | Brass 8-32 |
| Strap Material: | .048” Thick Galvanized Steel |
| Terminal Screws: | Brass 8-32 |
| Toggle: | Polycarbonate |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Terminal Accom.: | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Terminal ID: | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination: | Back or Side Wire |
| Torque Range: | 12-14 inch pounds |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 111: | File #152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| RoHS: | Compliant |
| UL Fed Spec WS896E: | File #E7458 |
| UL Standard: | UL 20 |
| Warranty: | 10-Year Limited |
