Brand: Leviton Manufacturing Co
|
SKU:
955625

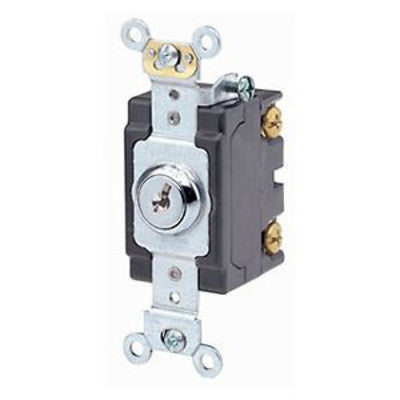

Leviton 1221-2KL | 20 Amp, 120/277 Volt, Key Locking Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired
Regular price
$111.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 1221-2KL | 20 Amp, 120/277 Volt, Key Locking Single-Pole AC...
Regular price
$111.16
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955625
Regular price
$111.16
Unit price
Shipping calculated at checkout.
Description
Description
20 Amp, 120/277 Volt, Key Locking Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired
Levitons Extra Heavy-Duty AC Key Locking Switches are the perfect choice for public use areas in schools/universities and pediatric facilities. Operable only with the mating key, it prevents unauthorized personnel from turning the switch ON or OFF.
Key Features
- Heavy Duty Key Operated Locking Mechanism for Maximum Tamperproof Operation in Schools, Institutions, Public Housing, Trailer Parks, Loading Docks, Freight Yards and other Areas
- Chrome Lock Dome with 2 Keys Provided per Switch
- Large, Combination Head Terminal Screw with External Clamps
- Triple-Combination Mounting Screws for Fast, Easy Installation
- Heavy Gauge Rust-Resistant Mounting Strap with Steel Grounding Screw and Self-Grounding Clip
- Key Removable in ON and OFF Positions
Product Features
| Device Type: | Key Lock Barrel Switch |
|---|---|
| Function: | Single-Pole |
| Grade: | Extra Heavy-Duty Industrial Specification Grade |
| Grounding: | Self-Grounding |
| HP Rating: | 1HP-120V 2HP-240V-277V |
| Strap Material: | Steel |
Specifications
Specifications
AC Horsepower Ratings
| HP Rating: | 1HP-120V 2HP-240V-277V |
|---|---|
| Max. Amperage: | 16 Amp |
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Dielectric Voltage: | Withstands 1500V for 1 minute |
| Endurance: | 50,000 cycles minimum |
| Grounding: | Self-Grounding |
| Overload UL20 Test: | 100 cycles of OL at 4.8 times rated current |
| Temperature Rise: | Maximum 30 degrees C rise |
| Voltage: | 120/277 VAC |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 65°C |
Material Specifications
| Body Material: | Thermoplastic |
|---|---|
| Strap Material: | Steel |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Terminal Accom.: | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Terminal ID: | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination: | Back or Side Wire |
| Torque Range: | 12-14 inch pounds |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 111: | File #152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Standard: | UL 20 |
| Warranty: | 10-Year Limited |
