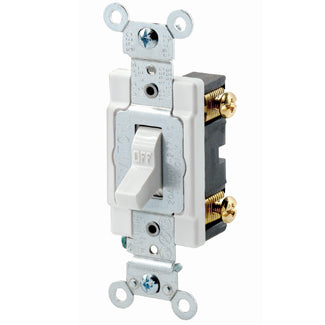

Leviton 1221-SW | 20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Back & Side Wired - WHITE
Regular price
$7.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 1221-SW | 20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet...
Regular price
$7.08
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955621
Regular price
$7.08
Unit price
Shipping calculated at checkout.
Description
Description
20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Back & Side Wired - WHITE
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Product Features
| Actuator Material: | Thermoplastic |
|---|---|
| Color: | White |
| Device Type: | Toggle Switch |
| Function: | Single-Pole |
| Grade: | Heavy-Duty Industrial Specification Grade |
| Voltage: | 120/277 VAC |
| Warranty: | 2-Year Limited |
Specifications
Specifications
AC Horsepower Ratings
| HP Rating: | 1HP-120V 2HP-240V-277V |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Dielectric Voltage: | Withstands 1500V for 1 minute |
| Grounding: | Self-Grounding |
| Temperature Rise: | Maximum 30 degress C rise |
| Voltage: | 120/277 VAC |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 65°C |
Material Specifications
| Actuator Material: | Thermoplastic |
|---|---|
| Base Material: | PBT |
| Body Material: | Thermoplastic |
| Color: | White |
| Contacts: | Silver-Cadmium .031 Thick |
| Cover Material: | Nylon |
| Strap Material: | Steel |
| Terminal Screws: | Steel 8-32 |
| Toggle: | Polycarbonate |
Mechanical Specifications
| Product ID: | Stamped on Strap |
|---|---|
| Terminal Accom.: | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back or Side Wire |
| Torque Range: | 12-14 inch pounds |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 111: | File #152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Fed Spec WS896F: | File #E7458 |
| UL Standard: | UL 20 |
| Warranty: | 2-Year Limited |
