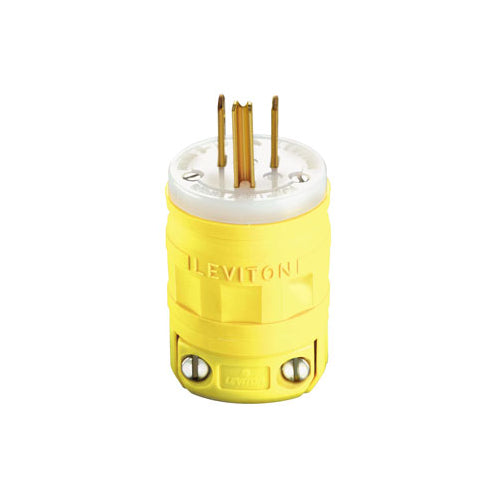

Leviton 1447 | Dustguard Straight Blade Plug

Leviton’s Dustguard line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid one-piece construction for superior conductivity. They are engineered to IP44 S{plash proof and dust-tight standards. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they{ are backed by a limited lifetime warranty.

Leviton - 1447 - Features

• Tongue and Groove Design of Front Module and TPV Body Assures Tight Fit in Husk and Offers Excellent Barrier Against Dirt and Dust
• Rubber Membrane Seal for Secure Cord Grip
• Creates a Barrier and Keeps Contaminants from Entering the Device Interior
• Fast-Threading Assembly Screws, Keyed Wiring Module and Husk, Self-Centering
• Strain Relief Clamps and Deep-Funneled Wiring Wells Provide for Simple and Fast Assembly

---

Leviton - 1447 - Specifications

UNSPSC Code	39121400
Amperage	15 A
Current Limiting	Full Rated Current
Dielectric Voltage	Withstands 2000V per UL498
Grounding	Grounding
Pole	2
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Voltage	125 VAC
Wire	3
Environment	Dry
Flammability	Rated V-2 per UL 94
Operating Temperature	-40°C to 60°C
Assembly Screws	Steel, Zinc Plated
Blades/Contacts	Solid Brass
Body Material	Santoprene TPV
Bushing	Santoprene TPV
Compression Nut, Strain Relief	Nylon
