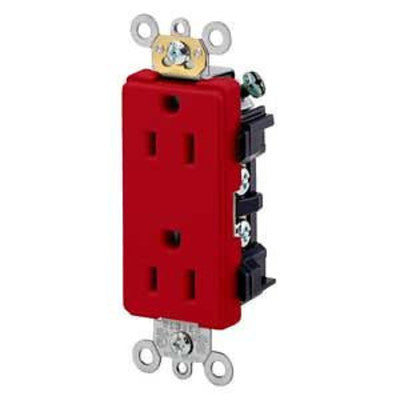

Leviton 16252-R | Decora Plus Duplex Receptacle Outlet, Heavy-Duty ...
Description
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Product Features
| ANSI: | C-73 |
|---|---|
| Brand: | Decora Plus |
| CSA C22.2 No. 42: | File LR-406 |
| Device Type: | Duplex Receptacle Outlet |
| Feature 4: | Smooth Face |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-15R |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
Specifications
Specifications
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 498, Fed Spec W-C-596, CSA C22.2 No.42 |
| At Rated Voltage: | 1/2 HP |
| Certification/Listing: | cULus, NON-ANCE |
| RoHS: | RoHS Compliant |
| Warranty: | 10-Year Limited |
AC Horsepower Ratings
| Amperage: | 15 A |
|---|---|
| At Rated Voltage: | 1/2 HP |
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 3000V min |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30°C temperature rise at full rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 3000V min |
| Flammability: | Rated V-2 per UL 94 |
| Grounding: | Self-Grounding |
| Operating Temperature: | -40°C to 60°C |
| Pole: | 2 |
| Temperature Rise: | Max 30°C temperature rise at full rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Color: | Red |
| Face Material: | PBT Polyester Blend |
| Flammability: | Rated V-2 per UL 94 |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | #8 Hex Head, Triple-Drive Brass |
| Line Contacts: | 0.030" Phosphor Bronze |
| Operating Temperature: | -40°C to 60°C |
| Strap Material: | Steel (Galvanized G60) |
| Terminal Screws: | #8 Triple-Drive Brass |
Material Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Color: | Red |
| Face Material: | PBT Polyester Blend |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | #8 Hex Head, Triple-Drive Brass |
| Line Contacts: | 0.030" Phosphor Bronze |
| Product ID: | Ratings are permanently marked on device |
| Strap Material: | Steel (Galvanized G60) |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Screws: | #8 Triple-Drive Brass |
| Termination: | Back and Side Wire |
Mechanical Specifications
| Brand: | Decora Plus |
|---|---|
| Color: | Red |
| Device Type: | Duplex Receptacle Outlet |
| Feature 4: | Smooth Face |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-15R |
| Product ID: | Ratings are permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back and Side Wire |
