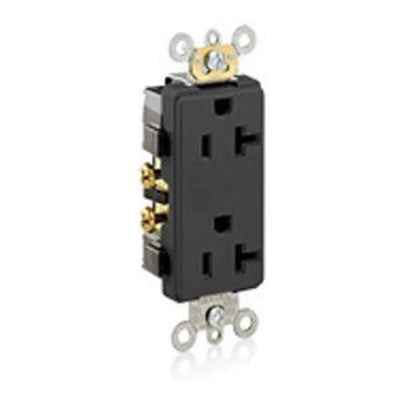

Leviton 16352-E | Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, Self-Grounding - Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 16352-E | Decora Plus Duplex Receptacle Outlet, Heavy-Duty ...
Description
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back and Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Key Features
- Heavy Gauge Locked-In Wraparound Strap
- Back Wire Terminals Accept up to 10 AWG Copper or Copper Clad Wire, Solid or Stranded
- Brass Staked on Self-Grounding Clip
- Heavy Duty Triple-Wipe Brass Contacts for Long Service Life
- Impact Resistant Thermopltic Construction
Product Features
| Brand: | Decora Plus |
|---|---|
| Color: | Black |
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Smooth Face |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-20R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
Material Specifications
| Body Material: | Thermoplastic Nylon |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Color: | Black |
| Face Material: | Thermoplastic Nylon |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass Triple-Wipe .031 Thick |
| Strap Material: | Zinc-Plated Steel |
| Terminal Screws: | Brass 10-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back and Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
