Brand: Leviton Manufacturing Co
|
SKU:
927794

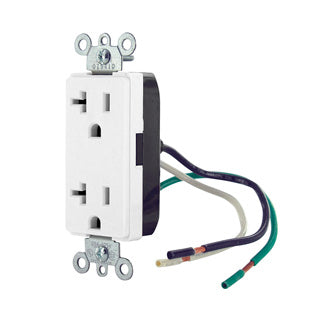

Leviton 16352-LW | Decora Plus Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, Self-Grounding - White
Regular price
$19.78
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 16352-LW | Decora Plus Duplex Receptacle Outlet, Commercial...
Regular price
$19.78
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
927794
Regular price
$19.78
Unit price
Description
Description
Decora Plus Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Pre-Wired Leads, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Key Features and Benefits
- Constructed with impact-resistant thermosplastic cover and body
- Dual drive pins for sturdy assembly
- Large, triple-wipe brass "T" contacts for superior contact pressure, outstanding conductivity
- #12 AWG THHN wire leads, 6" length
- Heavy gauge, locked-in wrap-around mounting strap
- Backed by a Limited 10-Year Warranty
Product Features
| Amperage: | 20 A |
|---|---|
| Brand: | Decora Plus |
| Color: | White |
| Device Type: | Duplex Receptacle Outlet |
| Feature 4: | Smooth Face |
| Grade: | Commercial Specification Grade |
| Grounding: | Self-Grounding |
| Grounding Leads: | 6", #12 AWG THHN |
| NEMA: | 5-20R |
| Pole: | 2 |
| Standards and Certifications: | UL/CSA |
| Terminal Leads: | 6", #12 AWG THHN |
| Termination: | Pre-Wired Leads |
| Voltage: | 125 VAC |
| Warranty: | 10-Year Limited |
| Wire: | 3 |
Specifications
Specifications
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage Withstand: | 2000V minimum per UL 498 |
| Grounding: | Self-Grounding |
| Maximum Working Voltage: | 125V as rated |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Base Material: | Thermoplastic |
|---|---|
| Cover Material: | Thermoplastic |
| Grounding Leads: | 6", #12 AWG THHN |
| Mounting Screws: | Triple Combination Head, Steel |
| Mounting Strap: | Steel multipiece with 2 drive pins |
| Power Contacts: | Brass, triple wipe |
| Terminal Leads: | 6", #12 AWG THHN |
| Wiring: | 1 Hot Lead, 1 Neutral Lead, 1 Ground Lead |
Mechanical Specifications
| Lead Identification: | Leads identified in accordance with UL 498 (black, white & green) |
|---|---|
| Product ID: | Ratings are permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Termination: | Pre-Wired Leads |
