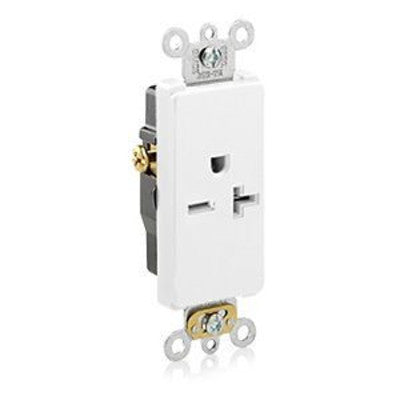

Leviton 16441-W | Decora Plus Single Receptacle Outlet, Commercial ...
Description
Description
Decora Plus Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - White
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Product Features
| Brand: | Decora Plus |
|---|---|
| Color: | White |
| Device Type: | Single Receptacle Outlet |
| Feature 4: | Smooth Face |
| Grade: | Commercial Specification Grade |
| NEMA: | 6-20R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 2 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Thermoplastic Nylon |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Color: | White |
| Face Material: | Thermoplastic Nylon |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass Triple-Wipe .031 Thick |
| Strap Material: | Zinc-Plated Steel |
| Terminal Screws: | Brass 10-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
