Leviton 2310-IG | 20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Flush Mtg ...
Description
Description

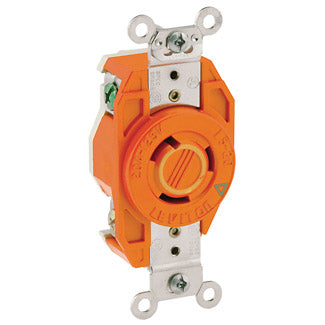

20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Product Features
| Brand: | V-0-Max |
|---|---|
| Color: | Orange |
| Face Material: | Valox |
| Feature: | Isolated Ground |
| NEMA: | L5-20R |
| Warranty: | Limited Lifetime Warranty |
Specifications
Specifications
Mechanical Specifications
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-8 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back & Side |
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Isolated Ground |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Corrosive |
|---|---|
| Flammability: | Rated V-0 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Valox 357 |
|---|---|
| Color: | Orange |
| Cover Material: | Valox 357 |
| Face Material: | Valox |
| Ground Clips: | Nickel-Plated Brass |
| Ground Contacts: | Brass |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass |
| Strap Material: | Nickel-Plated Brass |
| Terminal Screws: | Brass 10-32 |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA: | C22.2 No. 42 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL: | 498 |
| UL Fed Spec WC-596: | File E13399 |
Warranty
| Warranty: | Limited Lifetime Warranty |
|---|
