Leviton 2320-IG | 20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg ...
Description
Description

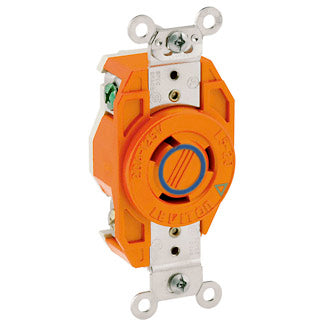

20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Product Features
| Base Material: | Valox |
|---|---|
| Brand: | V-0-Max |
| Color: | Orange |
| Face Material: | Valox |
| NEMA: | L6-20R |
| Warranty: | Limited Lifetime Warranty |
Specifications
Specifications
AC Horsepower Ratings
| Horsepower Rating: | 2 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Isolated Ground |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Corrosive |
|---|---|
| Flammability: | Rated V-0 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Base Material: | Valox |
|---|---|
| Body Material: | Valox 357 |
| Color: | Orange |
| Cover Material: | Valox 357 |
| Face Material: | Valox |
| Ground Clips: | Nickel-Plated Brass |
| Ground Contacts: | Brass |
| Grounding Screw: | Chromated Brass |
| Line Contacts: | Brass |
| Strap Material: | Nickel-Plated Brass |
| Terminal Screws: | Chromated Brass |
Mechanical Specifications
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-8 AWG |
| Terminal ID: | Marked on Device |
| Termination: | Back & Side |
| Torque Range: | 14-16 in-lbs |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA: | C22.2 No. 42 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL: | 498 |
Warranty
| Warranty: | Limited Lifetime Warranty |
|---|
