Leviton 2430 | 20 Amp, 480 Volt 3-Phase, NEMA L16-20R, 3P, 4W, Flus...
Description
Description

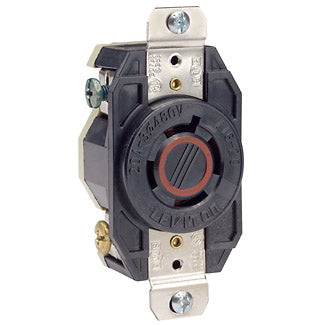

20 Amp, 480 Volt 3-Phase, NEMA L16-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Product Features
| Base Material: | Valox |
|---|---|
| Brand: | V-0-Max |
| Color: | Black |
| Device Type: | Locking Receptacle |
| Face Material: | Ultramid |
| NEMA: | L16-20R |
| Warranty: | Limited Lifetime Warranty |
Specifications
Specifications
Mechanical Specifications
| Cord Range: | 0.595 to 0.895 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-8 AWG |
| Terminal ID: | Marked on Device |
| Termination: | Back & Side |
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Phase: | 3-Phase |
| Pole: | 3 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 480 VAC |
| Wire: | 4 |
Environmental Specifications
| Environment: | Corrosive |
|---|---|
| Flammability: | Rated V-0 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Base Material: | Valox |
|---|---|
| Body Material: | Nylon |
| Color: | Black |
| Cover Material: | Valox 357 |
| Face Material: | Ultramid |
| Ground Contacts: | Brass |
| Grounding Screw: | Chromated Brass |
| Line Contacts: | Brass |
| Strap Material: | Nickel-Plated Brass |
| Terminal Clamps: | Nickel-Plated Brass |
| Terminal Screws: | Chromated Brass |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA: | C22.2 No. 42 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL: | 498 |
| UL Fed Spec: | W-C-596 |
Warranty
| Warranty: | Limited Lifetime Warranty |
|---|
