Brand: Leviton Manufacturing Co
|
SKU:
955633

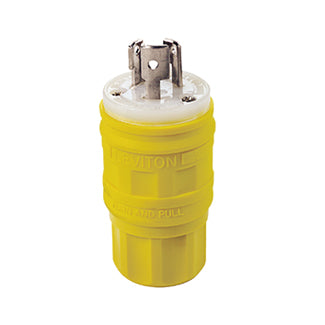

Leviton 24W47 | 15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW
Regular price
$31.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 24W47 | 15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug...
Regular price
$31.33
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955633
Regular price
$31.33
Unit price
Shipping calculated at checkout.
Description
Description
15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Product Features
| Assembly Screws: | Stainless Steel 300, Stainless Steel 300 |
|---|---|
| Blades/Contacts: | Nickel-Plated Brass, Nickel-Plated Brass |
| Body Material: | EPTR Rubber, EPTR Rubber |
| Brand: | Wetguard |
| Color: | Yellow |
| Device Type: | Locking Plug |
| NEMA: | L5-15P |
| Standards and Certifications: | UL/CSA |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Wet |
|---|---|
| Flammability: | Rated V-2 per UL 94 |
| IP Rating: | IP66, IP67, IP69K |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Stainless Steel 300, Stainless Steel 300 |
|---|---|
| Blades/Contacts: | Nickel-Plated Brass, Nickel-Plated Brass |
| Body Interior: | Nylon |
| Body Material: | EPTR Rubber, EPTR Rubber |
| Bushing: | Santoprene TPV |
| Compression Nut, Strain Relief: | Nylon |
| Terminal Screws: | Electroless Nickel-coated Brass |
| Wire Module: | Nylon |
Mechanical Specifications
| Cord Grip Range (in): | 0.375 to 0.655 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range: | 12-14 in-lbs |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL: | 498 |
| Warranty: | Limited Lifetime Warranty Warranty |
