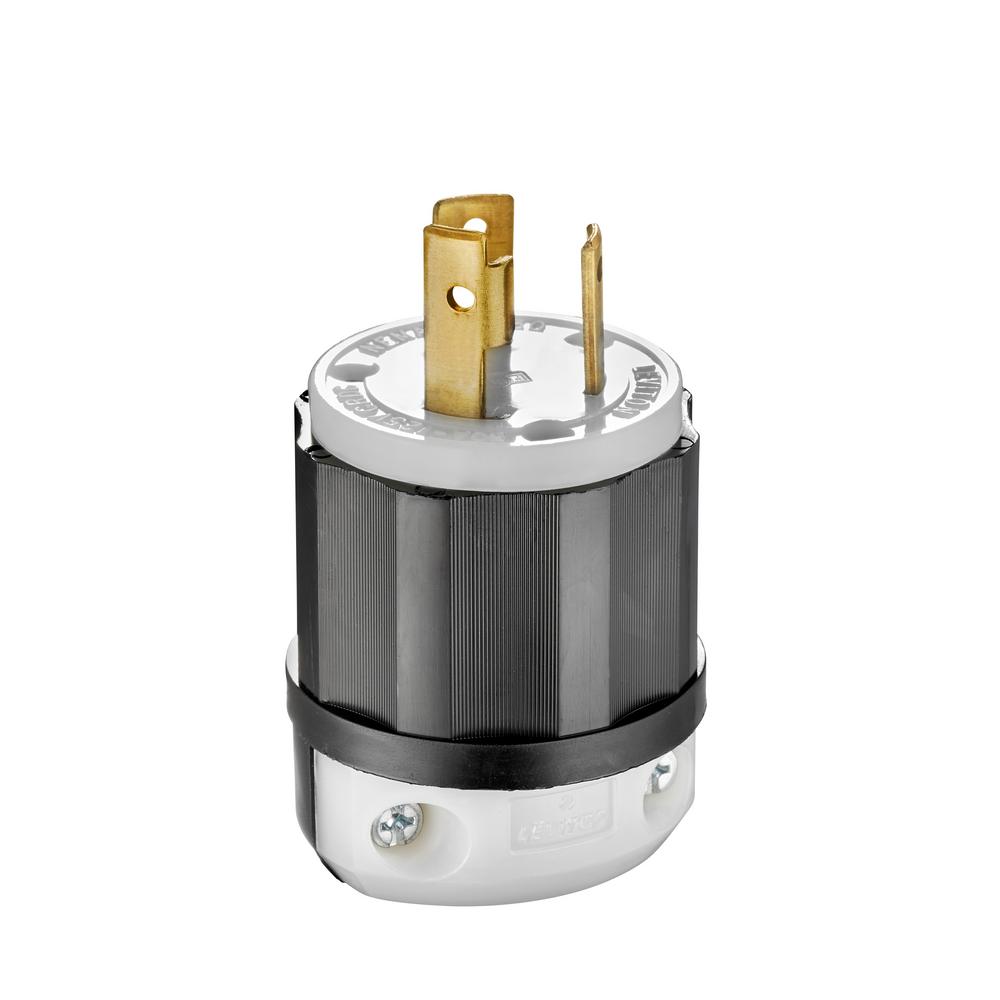

Leviton 2611 | 30 Amp, 125 Volt, NEMA L5-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black/White
Regular price
$28.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 2611 | 30 Amp, 125 Volt, NEMA L5-30P, 2P, 3W, Locking Plug,...
Regular price
$28.15
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
496015
Regular price
$28.15
Unit price
Shipping calculated at checkout.
Description
Description
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
Product Features
| Brand: | Black and White |
|---|---|
| Color: | Black-White |
| Device Type: | Locking Plug |
| NEMA: | L5-30P |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 2 HP |
|---|
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated V-2 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Back Cover: | Thermoplastic |
| Blades/Contacts: | Solid Brass |
| Body Material: | Impact Modified Nylon |
| Clamp Insert: | Nylon |
| Color: | Black-White |
| Cord-Clamp: | Nylon |
| Terminal Screws: | Brass |
| Wire Module: | Nylon |
Mechanical Specifications
| Cord Range: | 0.520 to 0.930 |
|---|---|
| Product ID: | Ratings are permanently marked on device |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range: | 10-14 in-lbs |
| Wire Gauge: | 16-8 AWG |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13393 |
| UL498: | File E13393 |
| Warranty: | Limited Lifetime Warranty |
