Leviton 2620 | 30 Amp, 250 Volt, NEMA L6-30R, 2P, 3W, Flush Mtg Loc...
Description
Description

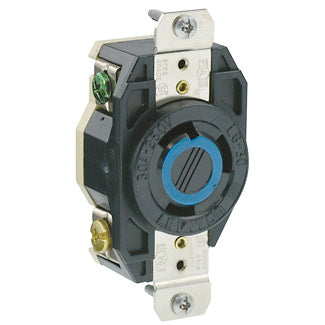

30 Amp, 250 Volt, NEMA L6-30R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for transfer switches, compressors, and generators
Product Features
| Base Material: | Valox |
|---|---|
| Brand: | V-0-Max |
| Color: | Black |
| Device Type: | Locking Receptacle |
| Face Material: | Ultramid |
| NEMA: | L6-30R |
| Warranty: | Limited Lifetime Warranty |
Specifications
Specifications
Mechanical Specifications
| Cord Range: | 0.385 to 0.860 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-8 AWG |
| Terminal ID: | Marked on Device |
| Termination: | Back & Side |
| Torque Range: | 14-16 in-lbs |
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Limiting: | Full Rated Current, Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Corrosive |
|---|---|
| Flammability: | Rated V-0 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Base Material: | Valox |
|---|---|
| Body Material: | Nylon, Nylon |
| Color: | Black |
| Cover Material: | Valox 357 |
| Face Material: | Ultramid |
| Ground Contacts: | Brass |
| Grounding Screw: | Chromated Brass |
| Line Contacts: | Brass |
| Strap Material: | Nickel-Plated Brass |
| Terminal Clamps: | Nickel-Plated Brass |
| Terminal Screws: | Chromated Brass |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA: | C22.2 No. 42 |
| NOM: | 57 |
| UL: | 498 |
| UL Fed Spec: | W-C-596 |
Warranty
| Warranty: | Limited Lifetime Warranty |
|---|
