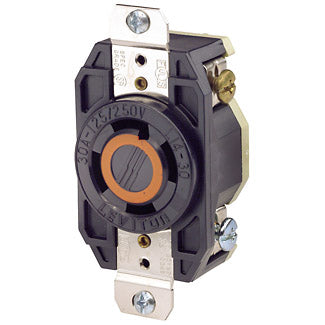

Leviton 2710 | 30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 2710 | 30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mt...
Description
Description
30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for generators and transfer switches
Product Features
| Brand: | V-0-Max |
|---|---|
| Color: | Black |
| Device Type: | Locking Receptacle |
| NEMA: | L14-30R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 2 HP L-L / 2 HP L-N |
|---|
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 3 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125/250 VAC |
| Wire: | 4 |
Environmental Specifications
| Environment: | Corrosive |
|---|---|
| Flammability: | Rated V-0 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Base Material: | Valox |
|---|---|
| Color: | Black |
| Face Material: | Ultramid |
| Grounding Screw: | Chromated Brass |
| Line Contacts: | Brass |
| Strap Material: | Nickel-Plated Brass |
| Terminal Screws: | Chromated Brass |
Mechanical Specifications
| Cord Range: | 0.595 to 1.150 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-8 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back & Side |
| Torque Range: | 14 – 16 in-lbs |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
| Warranty: | Limited Lifetime Warranty |
