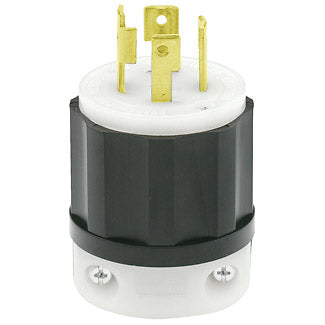

Leviton 2721 | 30 Amp, 250 Volt 3-Phase, NEMA L15-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Regular price
$58.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 2721 | 30 Amp, 250 Volt 3-Phase, NEMA L15-30P, 3P, 4W, Lock...
Regular price
$58.17
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
922818
Regular price
$58.17
Unit price
Shipping calculated at checkout.
Description
Description
30 Amp, 250 Volt 3-Phase, NEMA L15-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Product Features
| Brand: | Black and White |
|---|---|
| Color: | Black-White |
| Device Type: | Locking Plug |
| NEMA: | L15-30P |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 3 HP |
|---|
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Phase: | 3-Phase |
| Pole: | 3 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 4 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated HB or better UL94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Back Cover: | Thermoplastic |
| Blades/Contacts: | Solid Brass |
| Body Material: | Impact Modified Nylon |
| Clamp Insert: | Nylon |
| Color: | Black-White |
| Cord-Clamp: | Nylon |
| Terminal Screws: | Brass |
| Wire Module: | Nylon |
Mechanical Specifications
| Cord Range: | 0.560 to 1.050 |
|---|---|
| Product ID: | Ratings are permanently marked on device |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range: | 10-14 in-lbs |
| Wire Gauge: | 14-8 AWG |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13393 |
| UL498: | File E13393 |
| Warranty: | Limited Lifetime Warranty Warranty |
