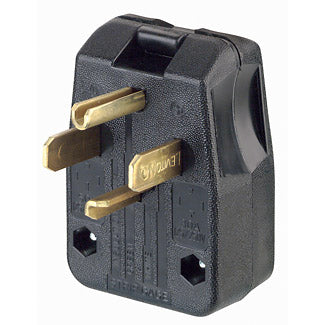

Leviton 275-E | 30/50 Amp, 125/250 Volt, NEMA 14-30P/14-50P, 3P, 4W...
Description
Description
30/50 Amp, 125/250 Volt, NEMA 14-30P/14-50P, 3P, 4W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Product Features
| Color: | Black |
|---|---|
| NEMA: | 14-30P/14-50P |
Specifications
Specifications
Electrical Specifications
| Amperage: | 30/50 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 3 |
| Temperature Rise: | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage: | 125/250 VAC |
| Wire: | 4 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Blades/Contacts: | Brass |
| Body Material: | Thermoplastic |
| Color: | Black |
Mechanical Specifications
| Cord Range: | .750 - 1.125 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom.: | 10-6 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13393 |
| Warranty: | 2-Year Limited |
