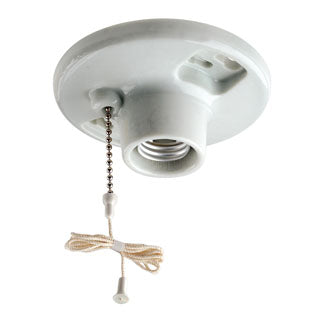

Leviton 29816-C | 660W/250V Medium Base One-Piece Glazed Porcelain Outlet Box Mount Incandescent Lampholder, Pull Chain, Single Circuit, Top Wired - White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 29816-C | 660W/250V Medium Base One-Piece Glazed Porcelain ...
Description
Description
660W/250V Medium Base One-Piece Glazed Porcelain Outlet Box Mount Incandescent Lampholder, Pull Chain, Single Circuit, Top Wired - White
Leviton produces lamp holders for virtually every light source equipped with incandescent, fluorescent, or LED lamps. Lamp-holders include incandescent medium base, and specialty sizes & fluorescent lamp holders, in addition to a large line of porcelain lamp holders including pulse-rated mogul-base products, and an extensive selection of devices for high-intensity lamps.
Product Features
| Construction: | One-Piece |
|---|---|
| Lamp Base: | Medium |
| Lampholder Type: | Outlet Box Mount |
| Light Type: | Incandescent |
| Max. Lamp Wattage: | 660W |
| Sequence: | ON-OFF |
| Standards and Certifications: | UL/CSA, NOM |
| Warranty: | 1-Year Limited |
| Wiring Access: | Top Wired |
Specifications
Specifications
Mechanical Specifications
| Availability: | Distribution |
|---|---|
| Body Material: | Glazed Porcelain |
| Circuit: | Single Circuit |
| Color: | White |
| Construction: | One-Piece |
| Fits Outlet Box Size: | 3-1/4 or 4 Inch |
| Lamp Socket Base: | Medium |
| Mounting Type: | Twist-Lock |
| Operator Type: | Pull Chain |
| Socket Shell Material: | Aluminum |
| Termination: | 2 Terminal Screws |
| Torque Range: | 14 – 18 in.-lbs |
Material Specifications
| Availability: | Distribution |
|---|---|
| Body Material: | Glazed Porcelain |
| Circuit: | Single Circuit |
| Color: | White |
| Fits Outlet Box Size: | 3-1/4 or 4 Inch |
| Lamp Socket Base: | Medium |
| Mounting Type: | Twist-Lock |
| Operator Type: | Pull Chain |
| Sequence: | ON-OFF |
| Shell Material: | Aluminum |
| Socket Shell Material: | Aluminum |
| Termination: | 2 Terminal Screws |
Electrical Specifications
| Availability: | Distribution |
|---|---|
| Circuit: | Single Circuit |
| Construction: | One-Piece |
| Fits Outlet Box Size: | 3-1/4 or 4 Inch |
| Lamp Socket Base: | Medium |
| Max. Lamp Wattage: | 660W |
| Mounting Type: | Twist-Lock |
| Operator Type: | Pull Chain |
| Sequence: | ON-OFF |
| Standards and Certifications: | UL/CSA, NOM |
| Termination: | 2 Terminal Screws |
| Warranty: | 1-Year Limited |
| Wiring Access: | Top Wired |
Standards and Certifications
| CSA Certified: | File LR-1863 |
|---|---|
| UL Listed: | File E3810 |
