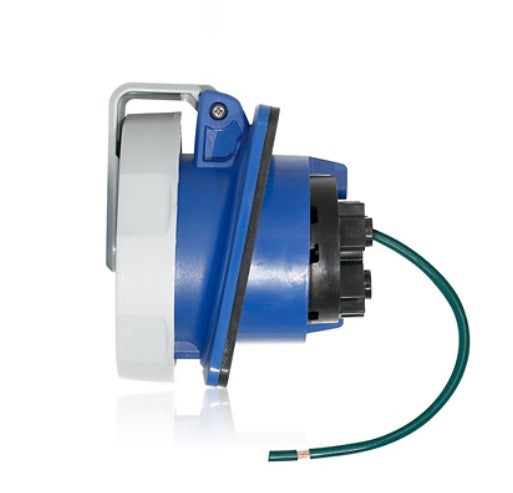

Leviton 320R6WLEV | LEV Series IEC Pin & Sleeve Receptacle
Regular price
$143.99
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10697011
Regular price
$143.99
Unit price
Description
Description
Leviton 320R6WLEV | LEV Series IEC Pin & Sleeve Receptacle
Specifications
Specifications
Leviton - 320R6WLEV - Specifications
| Manufacturer Part Number | 320R6WLEV |
|---|---|
| Brand | Leviton Manufacturing |
| Item Description | LEV Series IEC Pin & Sleeve Receptacle |
| UPC | 078477953143 |
| Amperage | 16/20 A |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
| Dielectric Voltage | 3000V for 1 min. |
| Endurance | 5000 cycles rated V and I load, zero cycles no-load (20A) |
| Max. Voltage | 600V |
| Overload UL20 Test | 50 cycles |
| Pole | 2 |
| SCCR | 200kA |
| Temperature Rise | Max 30°C rise at full rated current (after overload) |
| Voltage | 250 VAC |
| Wire | 3 |
| Corrosion Resistance | Salt fog tested |
| Flammability | Rated V-0 (Contact Carrier), HB or better (Housing) per UL94 |
| IP Rating | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Type | 3R, 4X, 6P and 12 |
