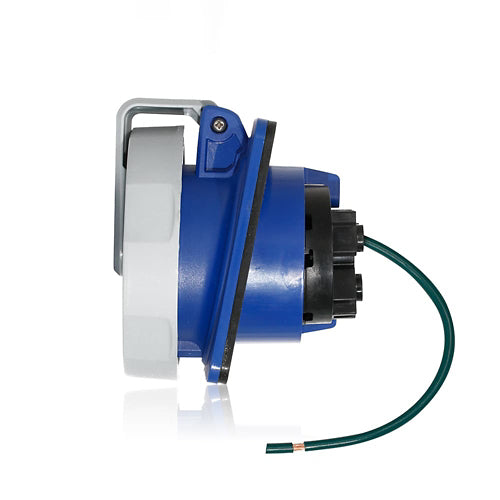

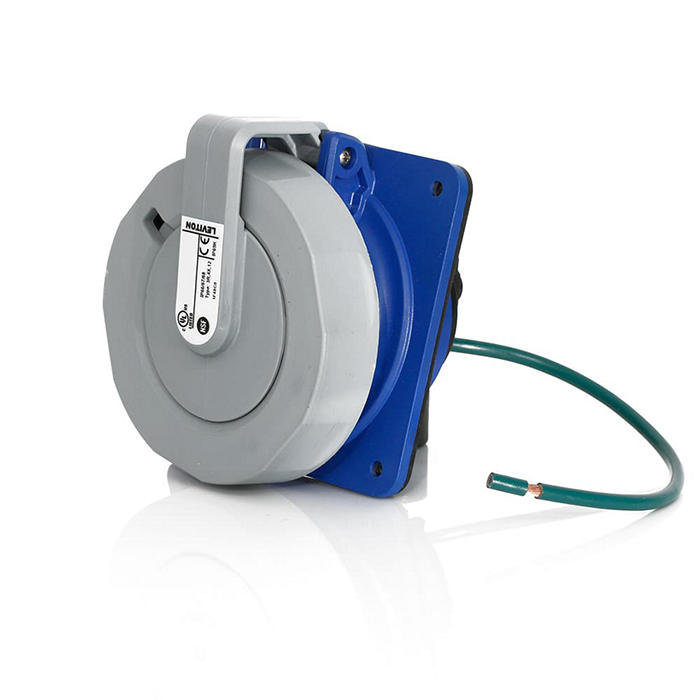

Leviton 330R6WLEV | LEV Series IEC Pin & Sleeve Receptacle

LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratins including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities.

Leviton - 330R6WLEV - Features

• Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
• Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
• NSF certified sanitary design trusted for use in food & beverage facilities

---

Leviton - 330R6WLEV - Specifications

Armored/Unarmored	For Use With Unarmored Cable
Explosion Proof	No
Material	Plastic
UNSPSC Code	39121400
Amperage	30 A
Current Interrupting	Certified for current interrupting at full-rated current and voltage
Dielectric Voltage	3000V for 1 min.
Endurance	1000 cycles rated V and I load, 1000 cycles no-load (30A)
Max. Voltage	600V
Overload UL20 Test	50 cycles
Pole	2
SCCR	200kA
Temperature Rise	Max 30°C rise at full rated current (after overload)
Voltage	250 VAC
Wire	3
Corrosion Resistance	Salt fog tested
Flammability	Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating	IP66, IP67, IP68, IP69K
NEMA Enclosure Type	3R, 4X, 6P and 12
NSF	14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment

---
