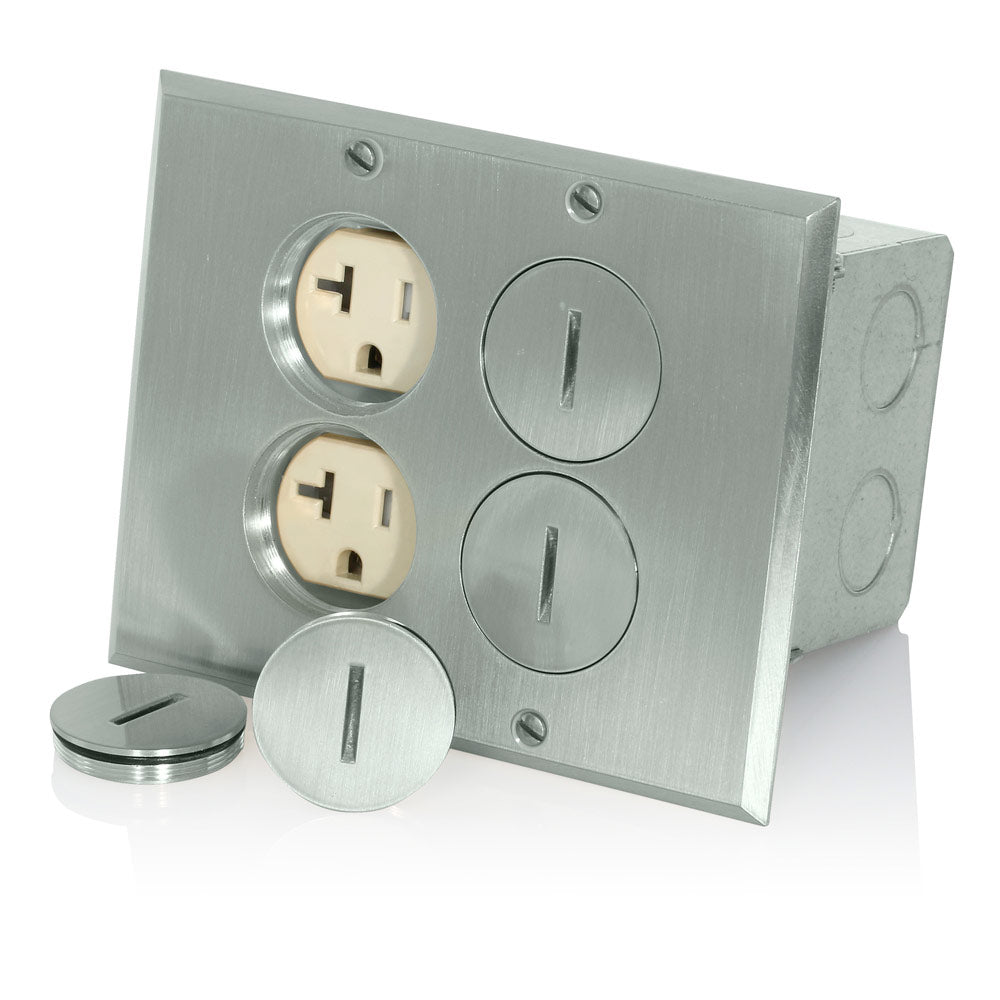

Leviton 35349-TFN | 2-Gang 20 Amp Duplex Tamper-Resistant Receptacle Floor Box Assembly, Nickel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 35349-TFN | 2-Gang 20 Amp Duplex Tamper-Resistant Receptacl...
Description
Description
2-Gang Floor Box, 20 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Nickel-Finish Plate - IVORY
For low profile, in-floor receptacle installations, our Floor Boxes are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Product Features
| Amperage: | 20 A |
|---|---|
| Color: | Ivory |
| NEMA: | 5-20R |
| Type: | Wood Frame |
| Voltage: | 125 VAC |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Nylon |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Color: | Ivory |
| Face Material: | Nylon |
| Floorplate Material: | Solid Brass 0.060 In Thick |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass Triple-Wipe .031 Thick |
| Shutter Mechanism: | Delrin® Acetal |
| Strap Material: | Zinc-Plated Steel |
| Terminal Screws: | Brass 8-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back & Side |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File E152105 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
