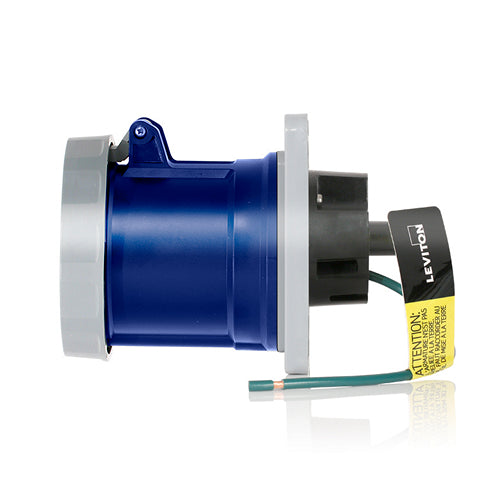

Leviton 360R6WLEV | LEV Series IEC Pin & Sleeve Receptacle
Regular price
$367.60
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9872107
Regular price
$367.60
Unit price
Description
Description
Leviton 360R6WLEV | LEV Series IEC Pin & Sleeve Receptacle
LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratins including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities.
Leviton - 360R6WLEV - Specifications
| Armored/Unarmored | For Use With Unarmored Cable |
| Explosion Proof | No |
| Material | Plastic |
| UNSPSC Code | 39121400 |
| Amperage | 60 A |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
| Dielectric Voltage | 3000V for 1 min. |
| Endurance | 1000 cycles rated V and I load, 1000 cycles no-load (60A) |
| Max. Voltage | 600V |
| Overload UL20 Test | 50 cycles |
| Pole | 2 |
| SCCR | 200kA |
| Temperature Rise | Max 30°C rise at full rated current (after overload) |
| Voltage | 250 VAC |
| Wire | 3 |
| Corrosion Resistance | Salt fog tested |
| Flammability | Rated V-0 (Contact Carrier), HB or better (Housing) per UL94 |
| IP Rating | IP66, IP67, IP68, IP69K |
| Contact Carrier | Glass filled Nylon |
| Grommet/Gasket | NBR/Buna N |
