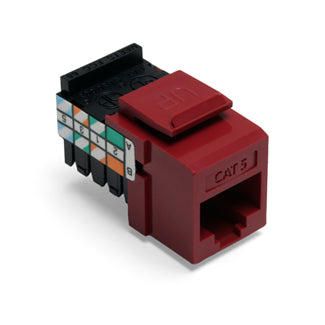

Leviton 41108-RR5 | Cat 5 QuickPort Connector, Red
Regular price
$2.52
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
204396
Regular price
$2.52
Unit price
Description
Description
Leviton's Category 5 Connector is designed for use with all QuickPort compatible products. 8-position, 8-conductor Category 5 QuickPort Snap-In Connectors feature dual-color-coded wiring labels with both T568A and T568B wiring patterns, for dual flexibility in a single connector, as well as fast, accurate 110 termination of station wiring.
Product Features
| Body Color: | Dark Red |
|---|---|
| Cable Type: | 8-Conductor UTP Copper Cat 5, 5e and 6 |
| Category Rating: | CAT 5 |
| Color: | Dark Red |
| Contact Base Material: | Phosphor Bronze |
| Contact Sub-Surface Material: | 100 microinches thick Nickel-Plated |
| Contact Surface Material: | 50 microinches thick Gold-Plated |
| Module Style: | Connector |
| Module Type: | Category 5 |
| Position / Conductor: | 8P8C |
| Standards and Certifications: | TIA/EIA cULus Listed |
| Termination Type: | 110 Punchdown |
| Warranty: | 1-Year Limited |
Specifications
Specifications
Environmental Specifications
| Flammability: | Rated V-0 per UL 94 |
|---|
Material Specifications
| Body Color: | Dark Red |
|---|---|
| Body Material: | High-Impact Fire-Retardant Plastic |
| Contact Base Material: | Phosphor Bronze |
| Contact Sub-Surface Material: | 100 microinches thick Nickel-Plated |
| Contact Surface Material: | 50 microinches thick Gold-Plated |
Mechanical Specifications
| Cable Type: | 8-Conductor UTP Copper Cat 5, 5e and 6 |
|---|---|
| Position / Conductor: | 8P8C |
| Product ID: | Permanently laser-engraved |
| Termination Type: | 110 Punchdown |
| Wiring Standard: | T568A T568B |
Performance Specifications
| Module Type: | Category 5 |
|---|
Standards and Certifications
| CSA: | Certified |
|---|---|
| FCC: | Part 68 Compliant |
| NEC: | Article 800 Compliant |
| TIA/EIA: | TIA-568-B |
| UL: | Listed |
