Leviton 430P7WLEVPI | LEV Series IEC Pin & Sleeve Plug with Inf...
Description
Description

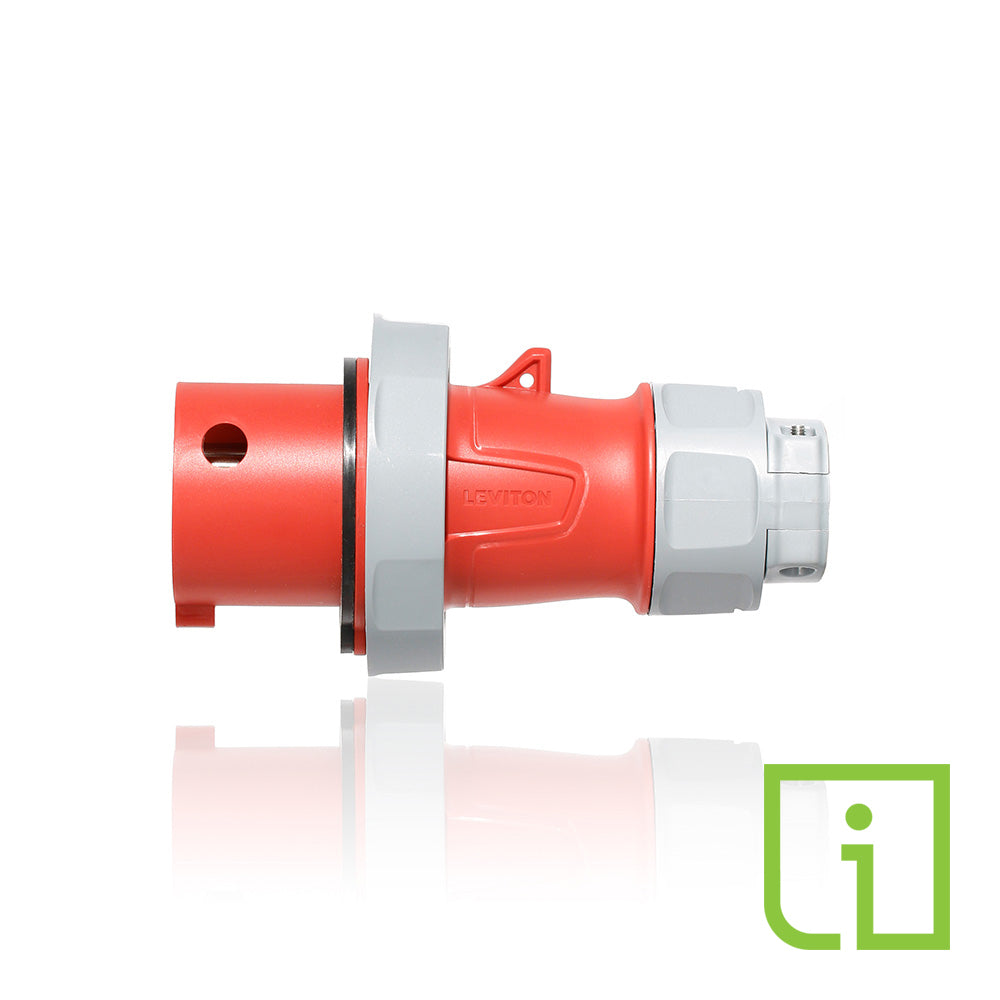

30 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & IEC 60309-2 Pin & Sleeve Plug with Power Indication, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Red
Inform is Leviton’s technology platform that enables conventional Leviton products to provide real-time information that is used to improve operational safety, efficiency, and productivity. ?Warning: Power may be present, even when the light is OFF. To avoid risk of death/injury via electric shock turn OFF power before servicing device.
- Green LED indication offers the ability to visually identify if there is power present
- LED illuminates when the device is energized
- Serves as both a safety feature and troubleshooting tool when there is a power problem with connected equipment
Product Features
| Clock Position: | 7 o'clock |
|---|---|
| Color: | Red |
| Configuration: | North American |
| Device Type: | Plug |
| Feature: | Power Indication |
| Lockout/Tagout Provision: | Lockout hole on housing |
| Product Markings: | Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label |
| Series: | LEV Series |
Specifications
Specifications
Electrical Specifications
| Amperage: | 30 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full-rated current and voltage |
| Dielectric Voltage: | 3000V for 1 min. |
| Endurance: | 2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load |
| Horsepower Rating: | 7.5 HP |
| Max. Voltage: | 600V |
| Overload UL20 Test: | 150% of rated current and 100% of rated voltage for 250 cycles |
| Phase: | 3-Phase |
| Pole: | 3 |
| SCCR: | 200kA |
| Temperature Rise: | Max 30°C rise at full rated current (after overload) |
| Voltage: | 480 VAC |
| Wire: | 4 |
Environmental Specifications
| Corrosion Resistance: | Salt fog tested |
|---|---|
| Flammability: | Rated V-0 (Contact Carrier), HB or better (Housing) per UL94 |
| IP Rating: | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Type: | 3R, 4X, 6P and 12 |
| NSF: | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| UV Resistance: | UV stabilized F1 rated housings |
Material Specifications
| Assembly Screws: | 303 Stainless Steel |
|---|---|
| Contact Carrier: | Glass filled Nylon |
| Grommet/Gasket: | NBR/Buna N |
| Housing: | Impact Modified Nylon |
| Locking Ring: | Impact Modified Nylon |
| Terminal Screws: | 303 Stainless Steel |
Mechanical Specifications
| Conductor Range: | #10 AWG to #8 AWG |
|---|---|
| Crush Test: | 250 lbs for 1 min after -25°C for 6 hrs |
| Hardware Head Type: | Hex style socket screws for terminals, combination screws for all others |
| Impact: | Drop from 30" 8 times after conditioning to -25°C, for 6 hoursDrop from 72" after conditioning to -35°C, for 6 hours |
Standards and Certifications
| CE: | CE certification |
|---|---|
| CSA: | CSA C22.2 No 182.1-13 (Harmonized with UL 1682) |
| IEC Rating: | 60309-1, 60309-2 |
| NOM: | NOM –ANCE standards |
| RoHS: | RoHS compliant components |
| UL: | UL 1686 C2, UL 1682 |
Warranty
| Warranty: | 5-Year Limited |
|---|
