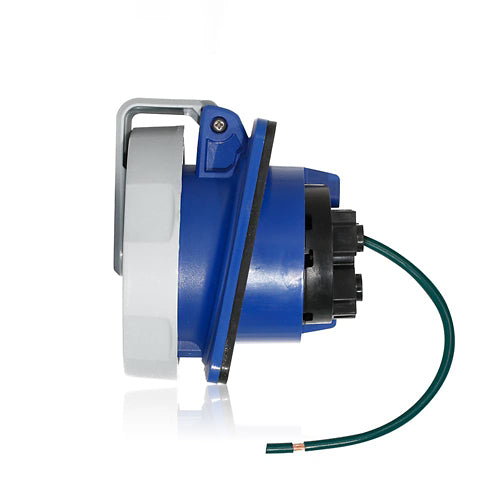

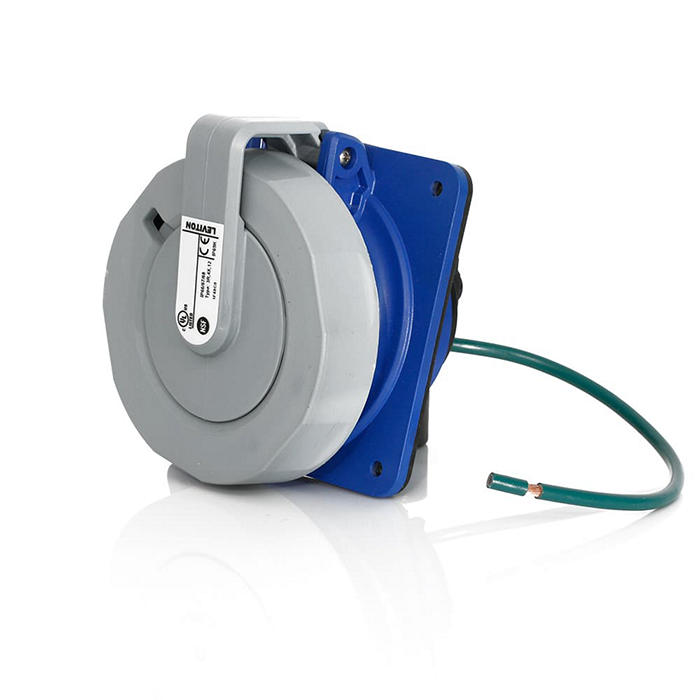

Leviton 430R9WLEV | LEV Series IEC Pin & Sleeve Receptacle

LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratins including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities

Leviton - 430R9WLEV - Features

• Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
• Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
• NSF certified sanitary design trusted for use in food & beverage facilities

---

Leviton - 430R9WLEV - Specifications

Armored/Unarmored	For Use With Unarmored Cable
Explosion Proof	No
Material	Plastic
UNSPSC Code	39121400
Electrical Specification	Screw Terminal Torque
20 in-lb	Corrosion Resistance
Salt fog tested	Flammability
Rated V-0 (Contact Carrier), HB or better (Housing) per UL94	IP Rating
IP66, IP67, IP68, IP69K	NEMA Enclosure Type
3R, 4X, 6P and 12	NSF
14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment	UV Resistance
UV stabilized F1 rated housings	Assembly Screws
303 Stainless Steel	Contact Carrier
Glass filled Nylon	Grommet/Gasket
NBR/Buna N	Housing
PBT	Terminal Screws
303 Stainless Steel	Amperage
30 A	Conductor Range

---
