Brand: Leviton Manufacturing Co
|
SKU:
9781707

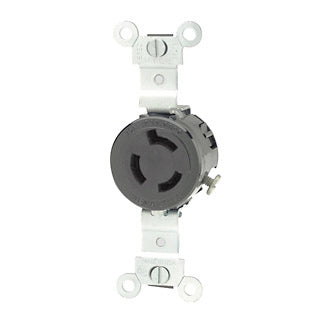

Leviton 4560 | 15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK
Regular price
$23.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 4560 | 15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Lockin...
Regular price
$23.26
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
9781707
Regular price
$23.26
Unit price
Shipping calculated at checkout.
Description
Description
15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Product Features
| Color: | Black |
|---|---|
| Device Type: | Locking Receptacle |
| NEMA: | L6-15R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1-1/2 HP |
|---|
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 250 VAC |
| Wire: | 3 |
Environmental Specifications
| Environment: | Dry |
|---|---|
| Flammability: | Rated V-2 per UL 94 |
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Nylon |
|---|---|
| Color: | Black |
| Face Material: | Nylon |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass .031 Thick |
| Strap Material: | Nickel-Plated Brass |
| Terminal Screws: | Brass 10-32 |
| Yoke: | Zinc-Plated Steel |
Mechanical Specifications
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 18-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Side |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
| Warranty: | Limited Lifetime Warranty Warranty |
