Leviton 47606-BNP | Basic Home Networking Plus (BNP) Panel
Regular price
$158.94
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
310091
Regular price
$158.94
Unit price
Description
Description

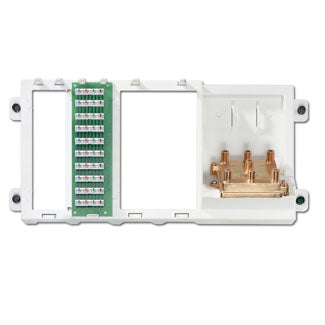

Leviton’s Basic Home Networking Plus Panel combines a Telephone Patching Expansion Board, Category 5e Voice & Data Board and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for essential telephone, video distribution and home networking. Handles up to four telephone lines through to seven connections. Suitable for phone, fax or modem. The panel also features six connections for voice or data.
Product Features
| 6-Way Video Splitter: | 1 |
|---|---|
| Bracket Material: | ABS Plastic |
| Cat 5e Voice Data Module: | 1 |
| Description: | Basic Home Networking Plus |
| Standards and Certifications: | CULUS/FCC/TIA/EIA |
| Telephone Patching Expansion: | 1 |
| Type: | Full Size Pre-Configured Cabling Panel |
| Warranty: | 2-Year Limited |
Specifications
Specifications
Dimensional Data
| Depth: | 2.28 Inch |
|---|---|
| Height: | 6.13 Inch |
| Width: | 13.3 Inch |
Material Specifications
| Bracket Material: | ABS Plastic |
|---|
Mechanical Specifications
| Cat 5e Voice Data: | Six Catagory 5e ports and six 110-IDC Conn. |
|---|---|
| Telephone Patching Expansion: | 1 |
| Video Splitter: | 1 F-Type Female Input, 6 F-Type Female Output |
| Video Splitter Frequency: | 2 GHz |
Standards and Certifications
| CULUS Listed: | Yes |
|---|---|
| FCC Rated: | Part 68 Compliant |
| TIA/EIA: | 568A |
Structured Media Components
| 6-Way Video Splitter: | 1 |
|---|---|
| Cat 5e Voice Data Module: | 1 |
| Telephone Patching Expansion: | 1 |
