Brand: Leviton Manufacturing Co
|
SKU:
10697016

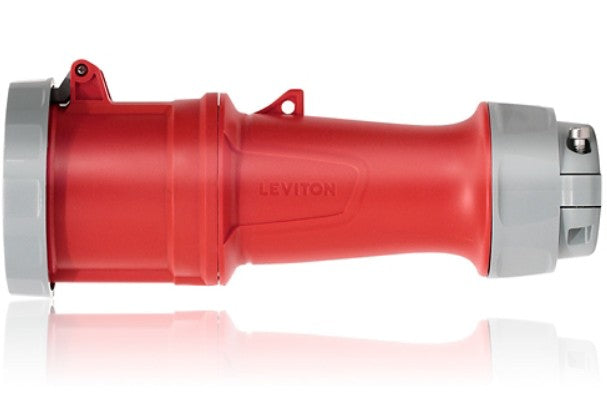

Leviton 5100C6WLEV | LEV Series IEC Pin & Sleeve Connector
Regular price
$667.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5100C6WLEV | LEV Series IEC Pin & Sleeve Connector
Regular price
$667.05
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10697016
Regular price
$667.05
Unit price
Shipping calculated at checkout.
Description
Description
Leviton 5100C6WLEV | LEV Series IEC Pin & Sleeve Connector
Specifications
Specifications
Leviton - 5100C6WLEV - Specifications
| Manufacturer Part Number | 5100C6WLEV |
|---|---|
| Brand | Leviton Manufacturing |
| Item Description | LEV Series IEC Pin & Sleeve Connector |
| UPC | 078477025253 |
| Amperage | 100 A / 125 A |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
| Dielectric Voltage | 3000V for 1 min. |
| Endurance | 250 cycles rated V and I load, 250 cycles no-load (100A) |
| Horsepower Rating | 20 HP |
| Max. Voltage | 600V |
| Overload UL20 Test | 50 cycles |
| Phase | 3-Phase |
| Pole | 4 |
| SCCR | 200kA |
| Temperature Rise | Max 30°C rise at full rated current (after overload) |
| Voltage | 200/346 - 240/415 VAC |
| Wire | 5 |
| Corrosion Resistance | Salt fog tested |
| Flammability | Rated V-0 (Contact Carrier), HB or better (Housing) per UL94 |
| IP Rating | IP66, IP67, IP68, IP69K |
| Operating Temperature | -35C to +66C |
