Brand: Leviton Manufacturing Co
|
SKU:
495905

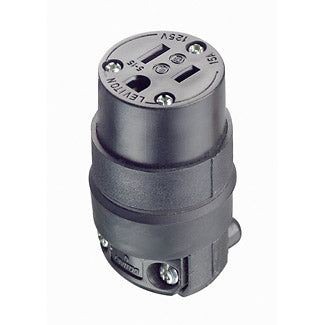

Leviton 515CR | 15 Amp, 125 Volt, NEMA 5-15R, 2Pole, 3Wire, Connector, Straight Blade, Rubber - Black
Regular price
$9.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 515CR | 15 Amp, 125 Volt, NEMA 5-15R, 2Pole, 3Wire, Connect...
Regular price
$9.36
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
495905
Regular price
$9.36
Unit price
Shipping calculated at checkout.
Description
Description
Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Product Features
| Color: | Black |
|---|---|
| Grade: | Residential |
| NEMA: | 5-15R |
| Series: | 515PV |
| Standards and Certifications: | UL/CSA |
| Wire Gauge: | 18-12 AWG |
Specifications
Specifications
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Interrupting: | Certified for current interrupting at full rated current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Assembly Screws: | Steel, Zinc Plated |
|---|---|
| Blades/Contacts: | Brass |
| Body Material: | EPTR Rubber |
| Color: | Black |
Mechanical Specifications
| Cord Range: | .245 - .700 |
|---|---|
| Product ID: | Ratings and NEMA I.D. permanently marked on device |
| Terminal Accom.: | 18-12 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File LR-406 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL498: | File E13393 |
| Warranty: | 2-Year Limited |
