Brand: Leviton Manufacturing Co | SKU: 1023725

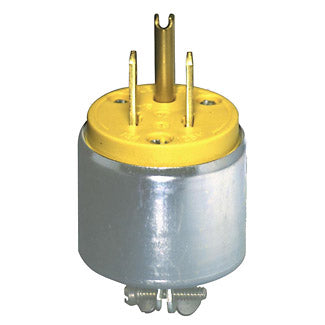

Leviton 515PA | 15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Plug, Straight Blade, Armored - Yellow

$6.76

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Plug, Straight Blade, Armored - Yellow

Product Features

Color:	Yellow
Cord Range:	.245 - .655
NEMA:	5-15P

Specifications

Electrical Specifications

Amperage:	15 A
Current Interrupting:	Certified for current interrupting at full rated current
Dielectric Voltage:	Withstands 2000V per UL498
Grounding:	Grounding
Pole:	2
Temperature Rise:	Max 30C after 50 cycles OL at 150 percent rated current
Voltage:	125 VAC
Wire:	3

Environmental Specifications

Flammability:	Rated V-2 per UL 94
Operating Temperature:	-40°C to 60°C

Material Specifications

Assembly Screws:	Steel, Zinc Plated
Blades/Contacts:	Brass
Body Material:	PVC / Steel
Color:	Yellow

Mechanical Specifications

Cord Range:	.245 - .655
Product ID:	Ratings and NEMA I.D. permanently marked on device
Terminal Accom.:	18-12 AWG
Terminal ID:	Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

ANSI:	C-73
CSA C22.2 No. 42:	File LR-406
NEMA:	WD-6
NOM:	57
UL498:	File E13393
Warranty:	2-Year Limited

Documents and Downloads
