Description
Description

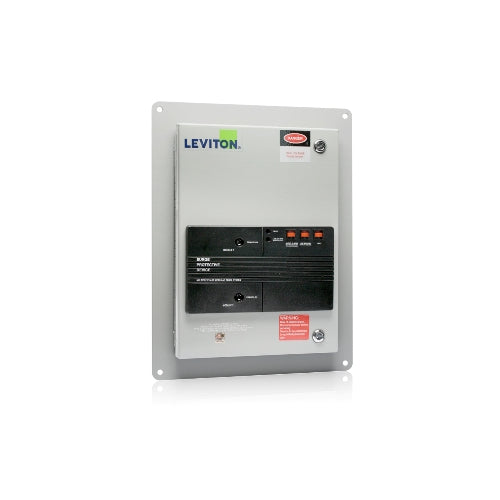

Leviton 52120-M1 | Type 2 Single Phase Surge Panel With Replaceable Surge Modules
Leviton - 52120-M1 - Specifications
| UNSPSC Code | 43223300 |
| Frequency | 50/60Hz |
| Recommended Circuit Breaker Rating | 30A, 120V |
| Surge Technology | 40mm MOV Design |
| Voltage Configuration | 120 V, Single Phase |
| Enclosure | Type 12 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -20?C to 40?C |
| Relative Humidity | 5% to 95% non-condensing |
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
| Connection Type | Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire |
| Surge Counter | No |
| Diagnostics | Real Time Protection status LEDs & Audible Alarm |
| MCOV | L-N:150V, L-G:300V, N-G:150V |
| Maximum Surge Current, Per Mode (Per Phase) | 100kA (200kA) |
| Noise Rejection | -20 to -40 dB at 5kHz-10MHz |
