Brand: Leviton Manufacturing Co
|
SKU:
1023727

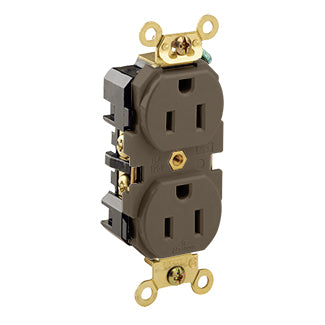

Leviton 5262 | Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Smooth Face, Self-Grounding - Brown
Regular price
$15.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5262 | Duplex Receptacle Outlet, Extra Heavy-Duty Industria...
Regular price
$15.51
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
1023727
Regular price
$15.51
Unit price
Shipping calculated at checkout.
Description
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Product Features
| Color: | Brown |
|---|---|
| Device Type: | Duplex Receptacle Outlet |
| Grade: | Extra Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-15R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1/2 HP |
|---|
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Thermoplastic Nylon |
|---|---|
| Clamp Nuts: | Zinc-Plated Steel |
| Color: | Brown |
| Face Material: | Thermoplastic Nylon |
| Ground Clips: | Brass-Plated |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Brass Triple-Wipe |
| Strap Material: | Brass |
| Terminal Screws: | Brass 10-32 |
| Yoke: | Brass |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back or Side Wire |
| Torque Range: | 14-16 in-lbs |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
