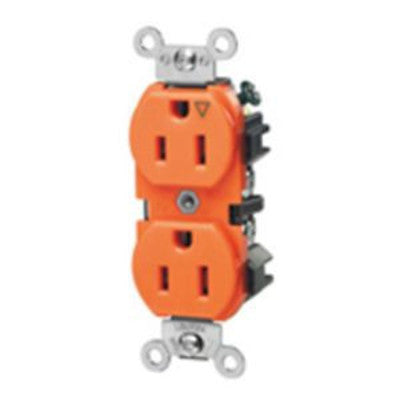

Leviton 5262-IG | Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, Self-Grounding - Orange
Regular price
$12.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5262-IG | Isolated Ground Duplex Receptacle Outlet, Heavy-D...
Regular price
$12.04
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955853
Regular price
$12.04
Unit price
Shipping calculated at checkout.
Description
Description
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face,15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Orange
Key Features
- Impact Resistant Thermoplastic Nylon Cover and Body
- Smooth Face Does not Collect Dirt
- Four Corner Latches Securely Fasten Face
- Large, Triple-Wipe, Brass T Contacts for Superior Contact and Conductivity
- Brass Terminal Screw to Reduce Conductor Oxition
- Break-Off Tabs for Easy 2-Circuit Conversion
- Apron Barrier to Prevent Accidental Contact Between Terminal Screw Heads and Metal Box
- Exclusive V-Shaped, Serrated Back Wiring Clamps for Superior Contact and Conductivity
- Wire Lead Receptacles f Fast and Easy Installation
Product Features
| Color: | Orange |
|---|---|
| Device Type: | Duplex Receptacle Outlet |
| Face Material: | PBT Polyester Blend |
| Feature: | Smooth Face |
| Function: | Isolated Ground |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-15R |
| Termination: | Back and Side Wire |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1/2 HP |
|---|
Electrical Specifications
| Amperage: | 15 A |
|---|---|
| Dielectric Voltage: | Withstands 3000 V min |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C temperature rise at full rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-0 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 75°C |
Material Specifications
| Body Material: | PBT Polyester Blend |
|---|---|
| Color: | Orange |
| Face Material: | PBT Polyester Blend |
| Grounding Screw: | #8 Hex Head, Triple-Drive Brass |
| Line Contacts: | 0.030" Phosphor Bronze |
| Strap Material: | Steel (Galvanized G60) |
| Terminal Screws: | #8 Triple-Drive Brass |
Mechanical Specifications
| Product ID: | Ratings are permanently part of devices |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | #14-#10 AWG |
| Terminal ID: | Brass-Hot, Silver-Neutral, Green-Ground |
| Termination: | Back and Side Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| Warranty: | 10-Year Limited |
