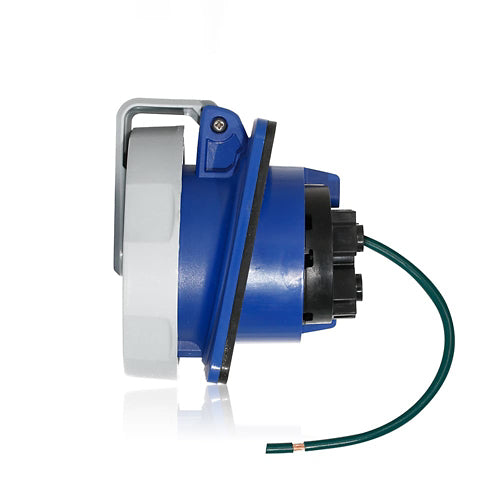

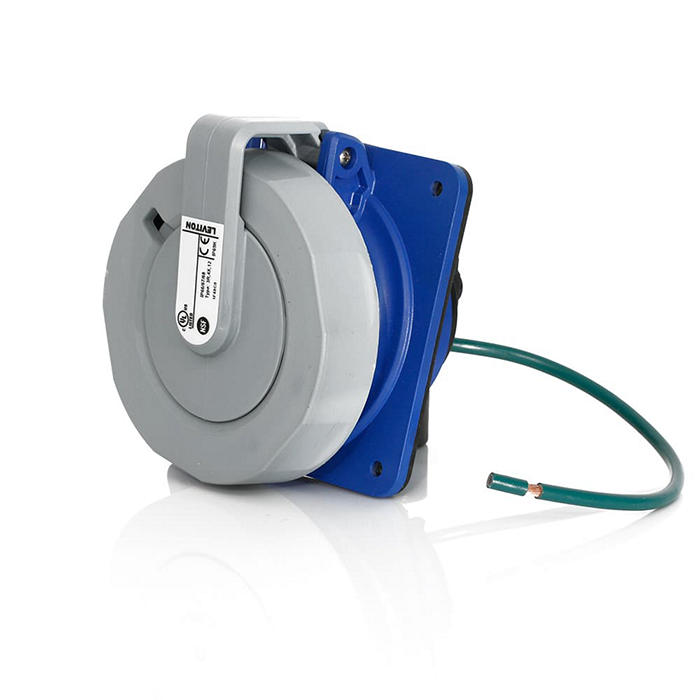

Leviton 530R9WLEV | LEV Series IEC Pin & Sleeve Receptacle

LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratins including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities

Leviton - 530R9WLEV - Features

• Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
• Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
• NSF certified sanitary design trusted for use in food & beverage facilities

---

Leviton - 530R9WLEV - Specifications

Armored/Unarmored	For Use With Unarmored Cable
Explosion Proof	No
Material	Plastic
UNSPSC Code	39121400
Corrosion Resistance	Salt fog tested
Flammability	Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating	IP66, IP67, IP68, IP69K
NEMA Enclosure Type	3R, 4X, 6P and 12
NSF	14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance	UV stabilized F1 rated housings
Assembly Screws	303 Stainless Steel
Contact Carrier	Glass filled Nylon
Grommet/Gasket	NBR/Buna N
Housing	PBT
Terminal Screws	303 Stainless Steel
Amperage	30 A
Cable Clamp Screw Torque	10 in-lb
Conductor Range	#12 AWG to #8 AWG

---

Leviton - 530R9WLEV - Documents and Downloads

Leviton 530R9WLEV Brochure

Download and View
