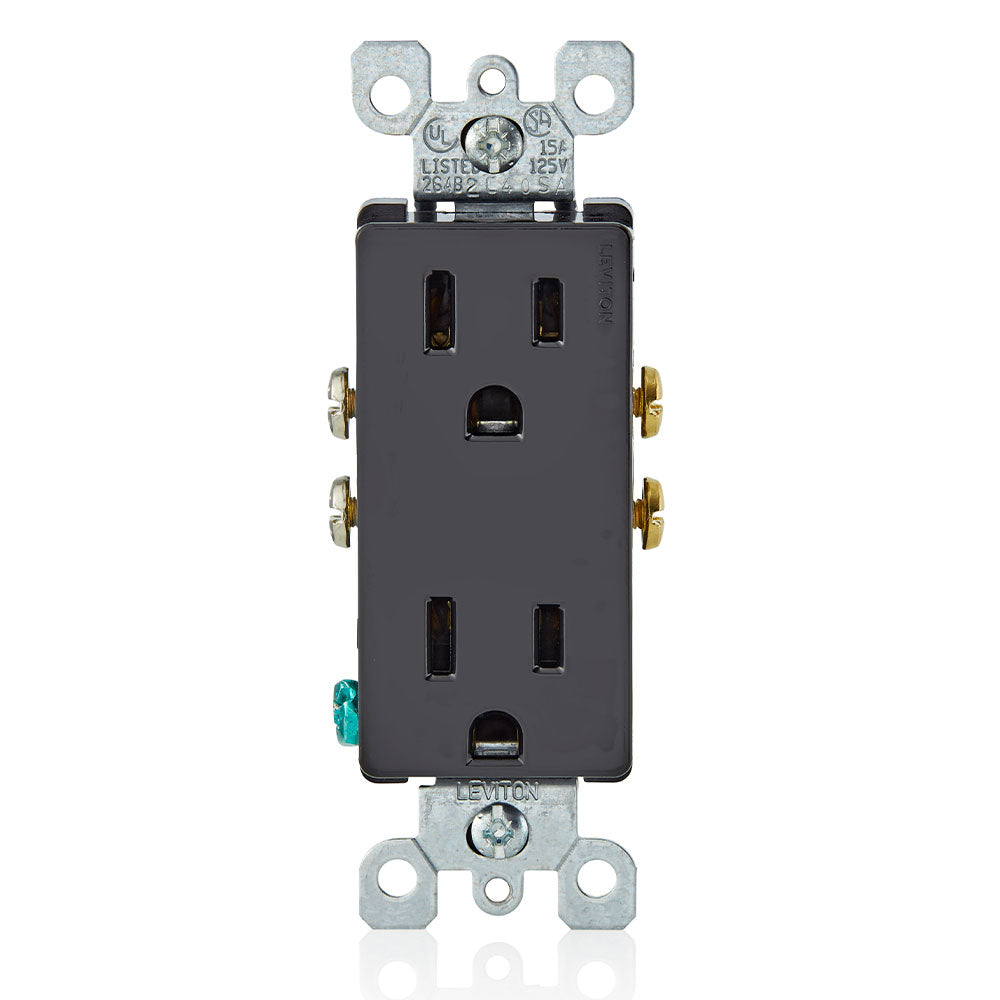

Leviton 5325-E | 15 Amp Decora Duplex Outlet
Regular price
$3.98
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
10148762
Regular price
$3.98
Unit price
Description
Description
15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Black
- EASY - Quick wire push-in and side wiring for easy installation
- DURABLE - Impact-resistant thermoplastic nylon construction
- CONVENIENT - Shallow depth for maximum wiring room
- COMPATIBLE - For use with Leviton Decora wallplates
Key Features and Benefits
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Limited 2-year warranty
Product Features
| Amperage: | 15 A |
|---|---|
| Body Material: | Thermoplastic |
| Color: | Black |
| Face Material: | Thermoplastic |
| Grounding: | Grounding |
| NEMA: | 5-15R |
| Pole: | 2 |
| Strap Material: | Steel |
| Termination: | Quickwire Push-In & Side |
| Torque Range: | 14 – 18 in.-lbs |
| Type: | Duplex Receptacle |
| Voltage: | 125 VAC |
| Warranty: | 1-Year Limited |
| Wire: | 3 |
Specifications
Specifications
Standards and Certifications
| CSA C22.2 No. 42: | File 152105; Class 6233-01 |
|---|---|
| NOM: | NOM Certified |
| UL 498: | File E13399 |
