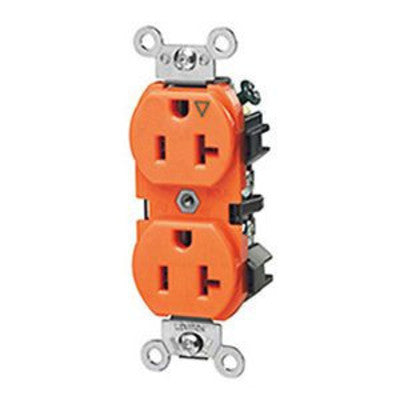

Leviton 5362-IG | Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, Self-Grounding - Orange
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5362-IG | Isolated Ground Duplex Receptacle Outlet, Heavy-D...
Description
Description
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back and Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Orange
Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Key Features
- Extra Heavy-Duty Industrial Specification Grade
- Single wrap-around brass strap
- Integral ground contacts and extra heavy-duty high-performance brass electrical contacts.
- Isolated Ground
Product Features
| Color: | Orange |
|---|---|
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Smooth Face |
| Function: | Isolated Ground |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-20R |
Specifications
Specifications
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back and Side Wire |
| Torque Range: | 14-16 in-lbs |
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Thermoplastic Nylon |
|---|---|
| Clamp Nuts: | Galvanized Steel |
| Face Material: | Thermoplastic Nylon |
| Grounding Screw: | Brass 8-32 |
| Isolated Ground System: | Brass |
| Line Contacts: | Phosphor Bronze |
| Strap Material: | Galvanized Steel |
| Terminal Screws: | Plated Brass |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
