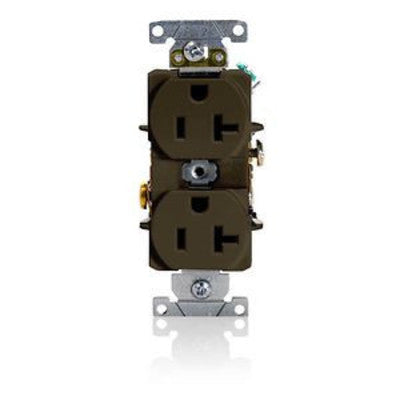

Leviton 5362-S | Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, Self-Grounding - Brown
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5362-S | Duplex Receptacle Outlet, Heavy-Duty Industrial Sp...
Description
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown
Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Key Features
- Impact Resistant Thermoplastic Nylon Cover and Body
- Smooth Face Does not Collect Dirt
- Four Corner Latches Securely Fasten Face
- Large, Triple-Wipe, Brass "T" Contacts for Superior Contact and Conductivity
- Brass Terminal Screw to Reduce Conductor Odation
- Break-Off Tabs for Easy 2-Circuit Conversion
- Apron Barrier to Prevent Accidental Contact Between Terminal Screw Heads and Metal Box
- Exclusive V-Shaped, Serrated Back Wiring Clamps for Superior Contact and Conductivity
- Wire Lead Receptaclesor Fast and Easy Installation
Product Features
| Color: | Brown |
|---|---|
| Device Type: | Duplex Receptacle Outlet |
| Feature 4: | Smooth Face |
| Grade: | Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-20R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Current Limiting: | Full Rated Current |
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 60°C |
Material Specifications
| Body Material: | Nylon |
|---|---|
| Clamp Nuts: | Galvanized Steel |
| Color: | Brown |
| Face Material: | Nylon |
| Ground Clips: | Brass |
| Grounding Screw: | Steel 8-32 |
| Line Contacts: | Brass Triple-Wipe |
| Strap Material: | Galvanized Steel with Riveted Ground Contacts |
| Terminal Screws: | Brass 10-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back or Side Wire |
| Torque Range: | 14-16 inch pounds |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-1 & WD-6 |
| NOM: | 57 |
| UL Fed Spec WC-596: | File E13399 |
| UL498: | File E13399 |
| Warranty: | 10-Year Limited |
