Brand: Leviton Manufacturing Co
|
SKU:
955604

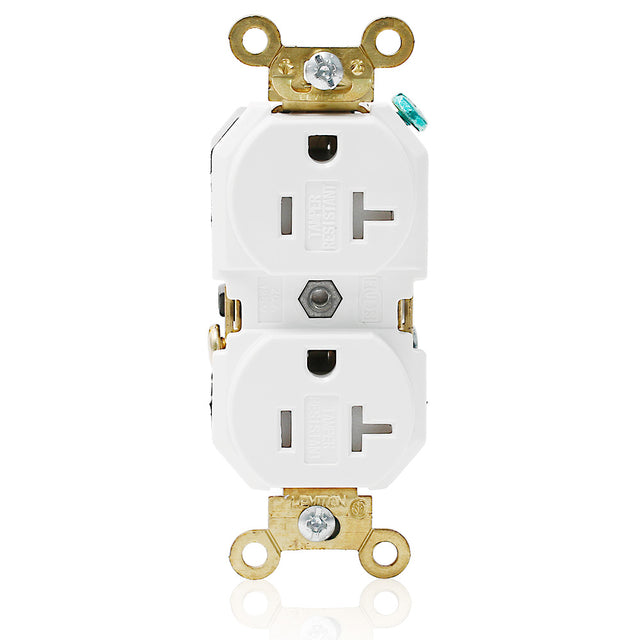

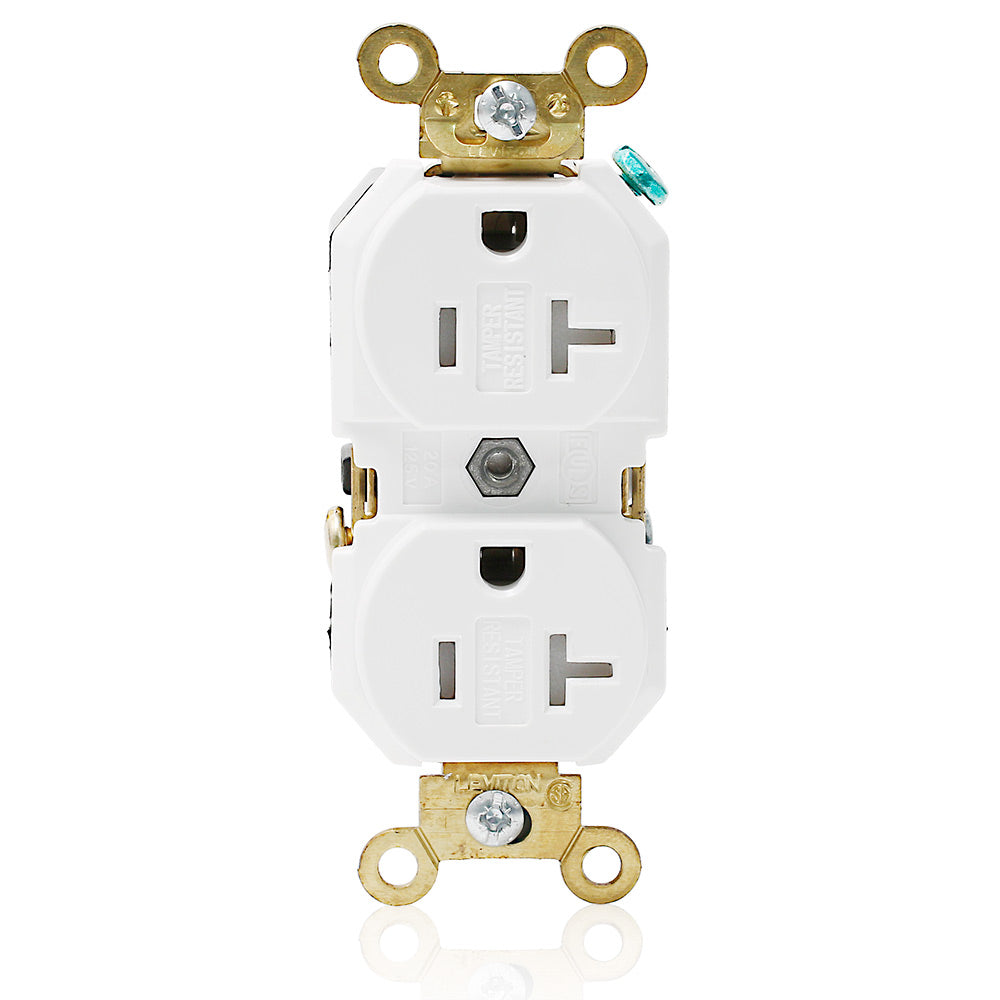

Leviton 5362-SGW | Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, Self-Grounding - White
Regular price
$23.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 5362-SGW | Duplex Receptacle Outlet, Extra Heavy-Duty Indus...
Regular price
$23.26
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
955604
Regular price
$23.26
Unit price
Shipping calculated at checkout.
Description
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Product Features
| Color: | White |
|---|---|
| Device Type: | Duplex Receptacle Outlet |
| Feature: | Tamper-Resistant, Smooth Face |
| Grade: | Extra Heavy-Duty Industrial Specification Grade |
| NEMA: | 5-20R |
Specifications
Specifications
AC Horsepower Ratings
| At Rated Voltage: | 1 HP |
|---|
Electrical Specifications
| Amperage: | 20 A |
|---|---|
| Dielectric Voltage: | Withstands 2000V per UL498 |
| Grounding: | Self-Grounding |
| Pole: | 2 |
| Temperature Rise: | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage: | 125 VAC |
| Wire: | 3 |
Environmental Specifications
| Flammability: | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature: | -40°C to 75°C |
Material Specifications
| Body Material: | Nylon |
|---|---|
| Face Material: | Nylon |
| Ground Clips: | Brass |
| Grounding Screw: | Brass 8-32 |
| Line Contacts: | Triple-Wipe .040" High Performance Brass Alloy |
| Strap Material: | Brass .050" |
| Terminal Clamp: | Zinc-Plated Steel |
| Terminal Screws: | Brass 10-32 |
Mechanical Specifications
| Product ID: | Ratings are permanently marked on device |
|---|---|
| Screw Terminal Torque: | 14-18 in-lbs |
| Terminal Accom.: | 14-10 AWG |
| Terminal ID: | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination: | Back or Side Wire |
| Wire Type: | Solid or Stranded Building Wire |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| Applicable Standards: | UL 498, CSA C22.2 No. 42, FedSpec W-C 596 |
| Certification/Listing: | UL, CSA, NOM-ANCE |
| NEMA: | WD-1 & WD-6 |
Warranty
| Warranty: | 10-Year Limited |
|---|
